Czech LED luminaires manufacturer

SPORT GRID M625

LED Luminaiares for False Ceilings with Protective Gride

ZCLED3GSPORT3-91L840/5B-GRID




    Variant

                                                  Luminaires are designed for sport halls and sports facilities where there is a risk that luminaires will be hit by a ball.

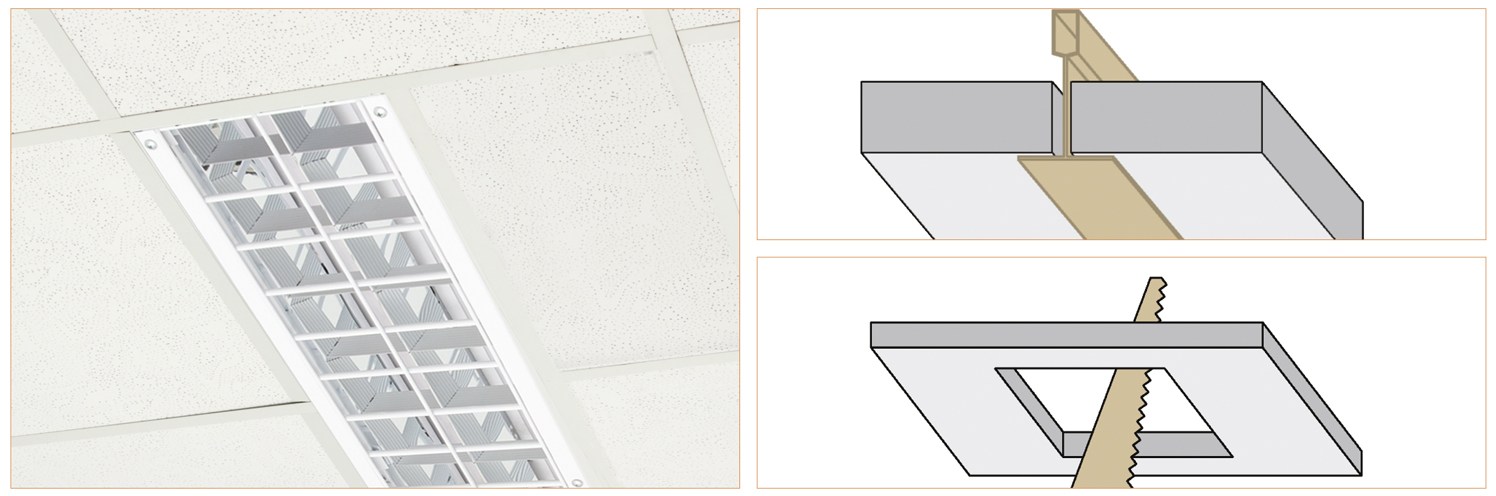

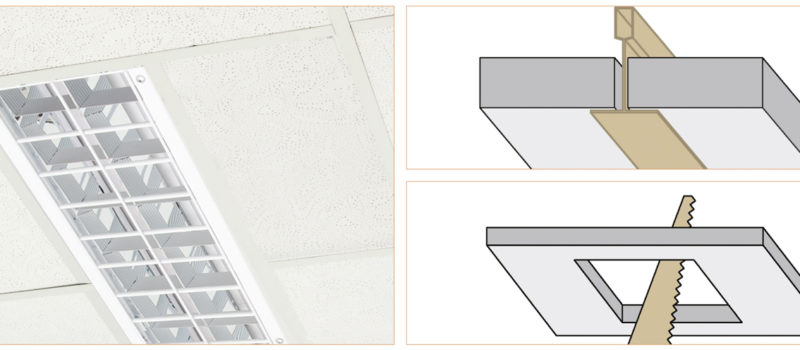

                                                  The luminaire body is made of white-coated steel metal. Luminaires can be mounted into M625 panel suspended ceilings as well as plasterboard. You need to order a mounting kit for mounting into plasterboard! Mechanical resistance is provided by a protective grid.

                                                  The optical part is made of a polished aluminum louvre.

                                                  If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                  If it is equipped with an autonomous emergency module it is 3W/1h (275 lm).

                                                  Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                  Certified lumianires for sports facilities have been a significant part of our production program since 1993.Thanks to many successful realizations, amateur as well as professional athletes from all over the world can enjoy the sport in well-lit environment under our luminaires.

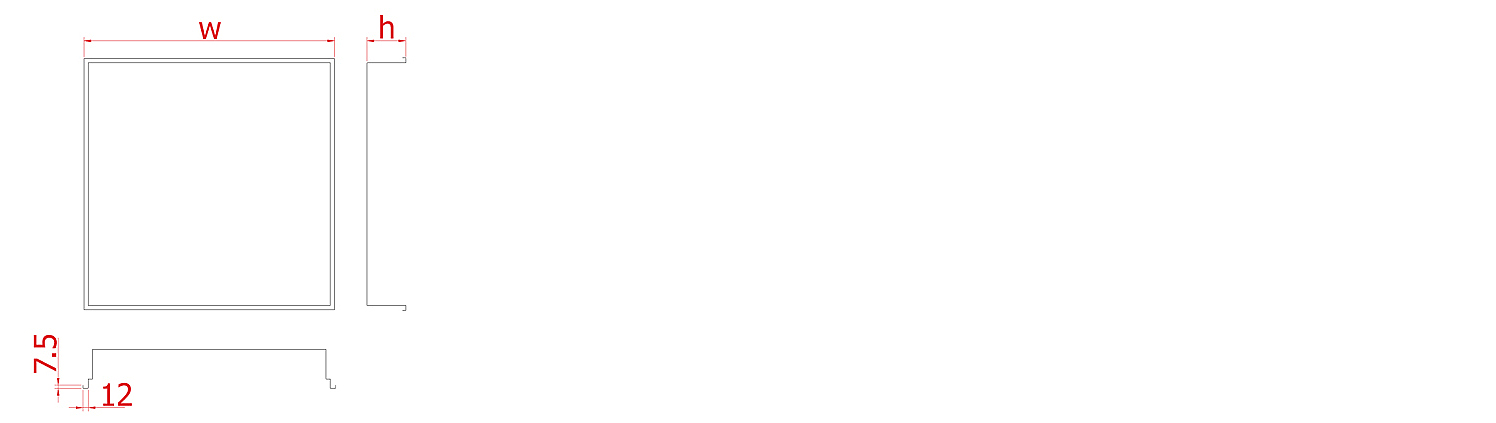

                                                  Dimension 445 x 1545 x 85 mm
                                                  Power 91 W
                                                  Luminous flux 11775 lm
                                                  Instalation M625,Plasteroard
                                                  Protection IP 20
                                                  IK 10
                                                  Color rendering index CRI > 80
                                                  Light colour CCT 4000 K
                                                  Ambient temperature 25 ˚C
                                                  Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                  Weight 13 kg
