Czech LED luminaires manufacturer

SPORT MIKRO

LED-Leuchten für komfortable Sportbeleuchtung

ZCLED3GSPORT123L840/MIKRO-ZK




    Variant

                                                          Luminaires are designed for sport halls and sports facilities where there is a risk that luminaires will be hit by a ball.

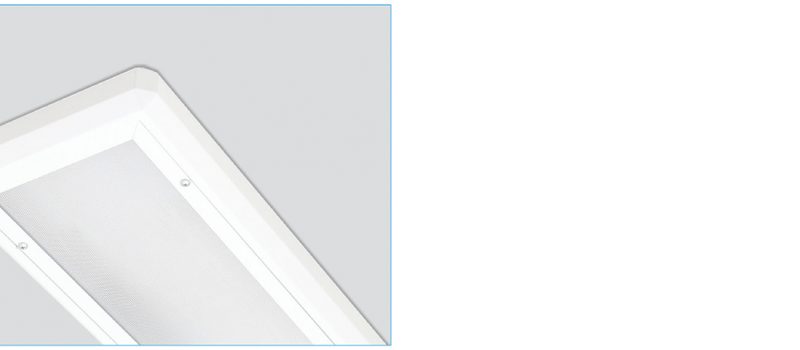

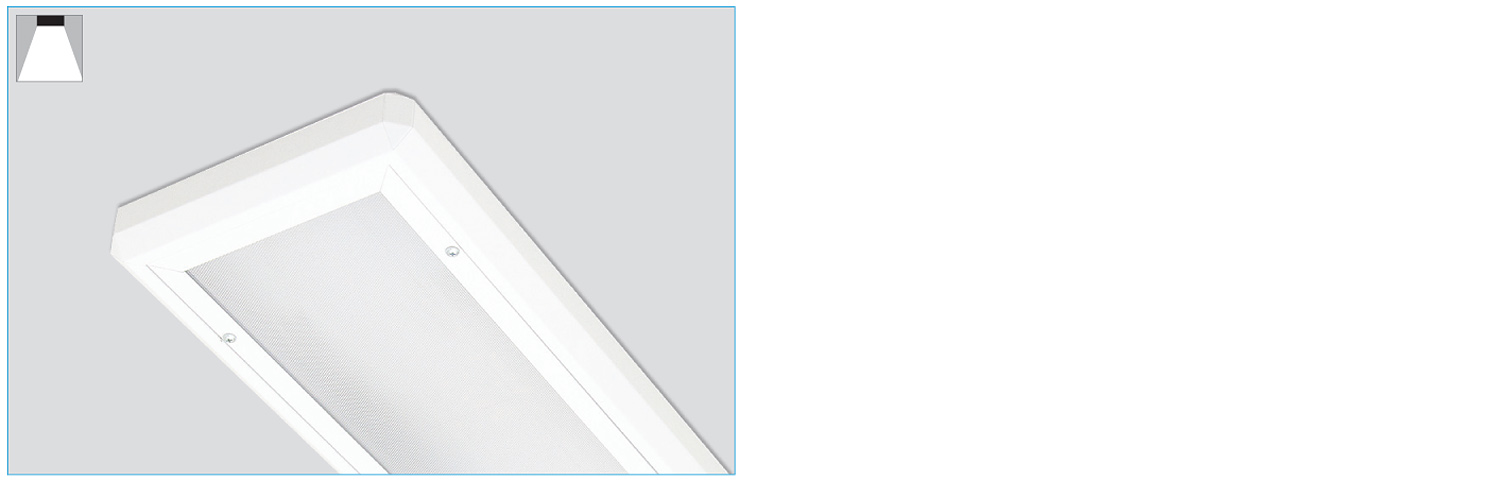

                                                          The body of the luminaire is made of white painted sheet steel. Mechanical resistance is provided by a microprismatic polycarbonate cover, which is fixed to the luminaire with screws using an aluminum frame. The luminaires are mounted on a solid ceiling. It can be mounted directly on usual inflammable surfaces.

                                                          The optical part of the luminaire consists of a microprismatic polycarbonate diffuser creating a visible structure from LEDs.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is 3W/1h .

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          Certified lumianires for sports facilities have been a significant part of our production program since 1993.Thanks to many successful realizations, amateur as well as professional athletes from all over the world can enjoy the sport in well-lit environment under our luminaires.

                                                          Installed LED modules in the luminaire 8x LED 15i60-840
                                                          Dimension 275 x 1255 x 60 mm
                                                          Power 123 W *
                                                          Luminous flux 13513 lm
                                                          Instalation Surface mounted
                                                          Mounting holes (AxBxC) 165x760 mm
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 5 kg,6
