SPORT LENS

Sports LED luminaires with high efficiency

ZCLED3GSPORT114L840/LENS90-M600




    Variant

                                                      Luminaires are designed for sport halls and sports facilities where there is a risk that luminaires will be hit by a ball.

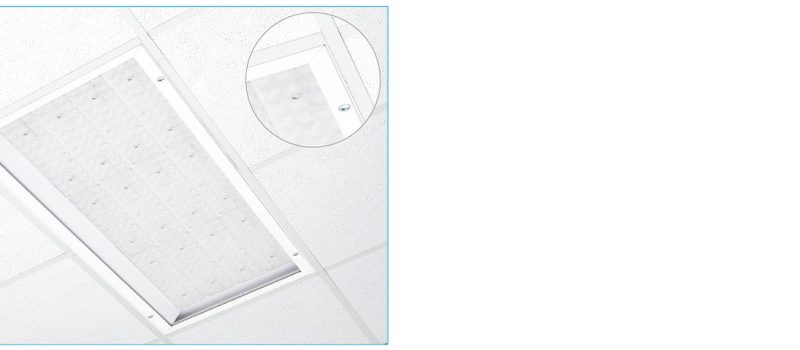

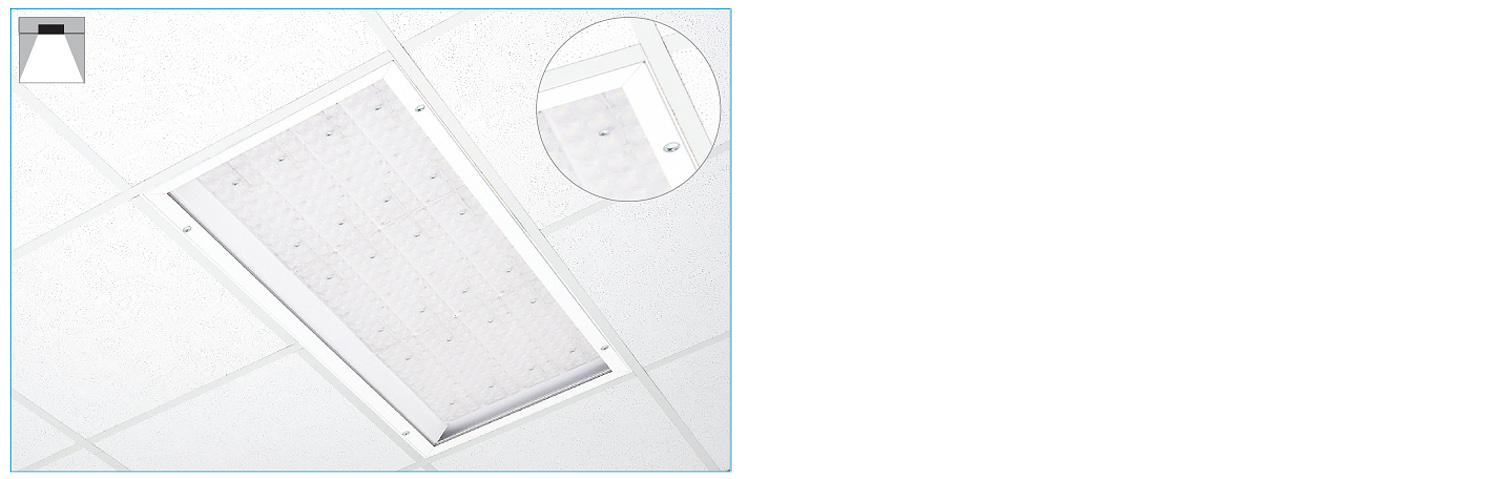

                                                      The body of the luminaire is made of white painted sheet steel. Mechanical durability is ensured by a clear polycarbonate cover, which is fastened to the luminaire with screws using an aluminum frame. Luminaires can be mounted into M600 panel suspended ceilings

                                                      The optical part of the luminaire consists of a system of lenses with a beam angle of 90˚

                                                      If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                      If it is equipped with an autonomous emergency module it is 3W/1h .

                                                      Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                      Certified lumianires for sports facilities have been a significant part of our production program since 1993.Thanks to many successful realizations, amateur as well as professional athletes from all over the world can enjoy the sport in well-lit environment under our luminaires.

                                                      Installed LED modules in the luminaire 10x LED Z60A-840

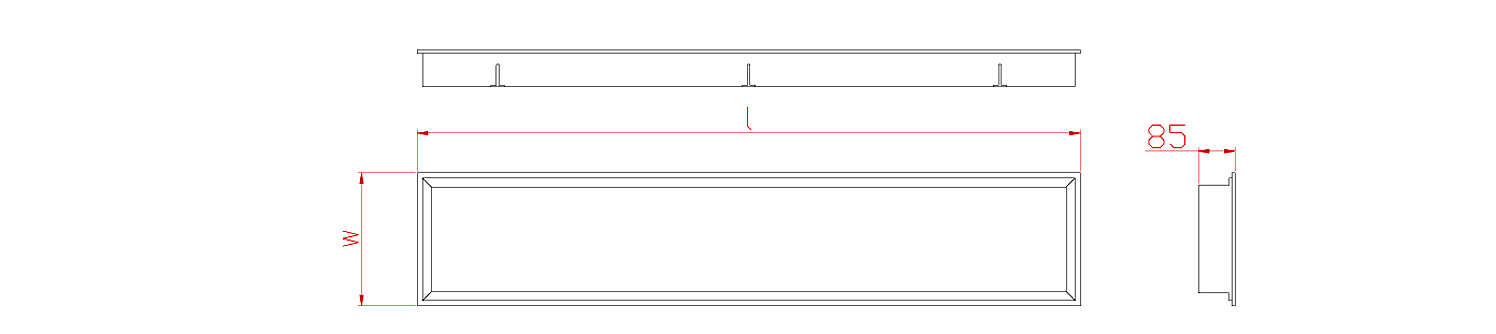

                                                      Dimension 295 x 1495 x 85 mm
                                                      Power 114 W *
                                                      Luminous flux 13548 lm
                                                      Instalation Surface mounted
                                                      Protection IP 40
                                                      Color rendering index CRI > 80
                                                      Light colour CCT 4000 K
                                                      Ambient temperature 25 ˚C
                                                      Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                      Weight 10 kg
