RING

Ring-shaped direct/indirect pendant luminaires

ZCLED3GID73R840/RING850-Mikro-C




    Variant

                                                          SKU: ZCLED3GID73R840/RING850-Mikro-C Categories: ,

                                                          The luminaires are suitable for lighting offices, administrative and social spaces.

                                                          The luminaires are made of aluminium profile and powder coated white. Cable suspension ZL4/1 is included in the luminaire. The luminaires are designed in such a way that part of the luminous flux goes into the upper half-space (illuminates the ceiling) in the ratio of 30% upwards and 70% downwards. This increases the indirect lighting component, which is very pleasant for the occupants.

                                                          The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is .

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                          Installed LED modules in the luminaire 2x LED R850-840

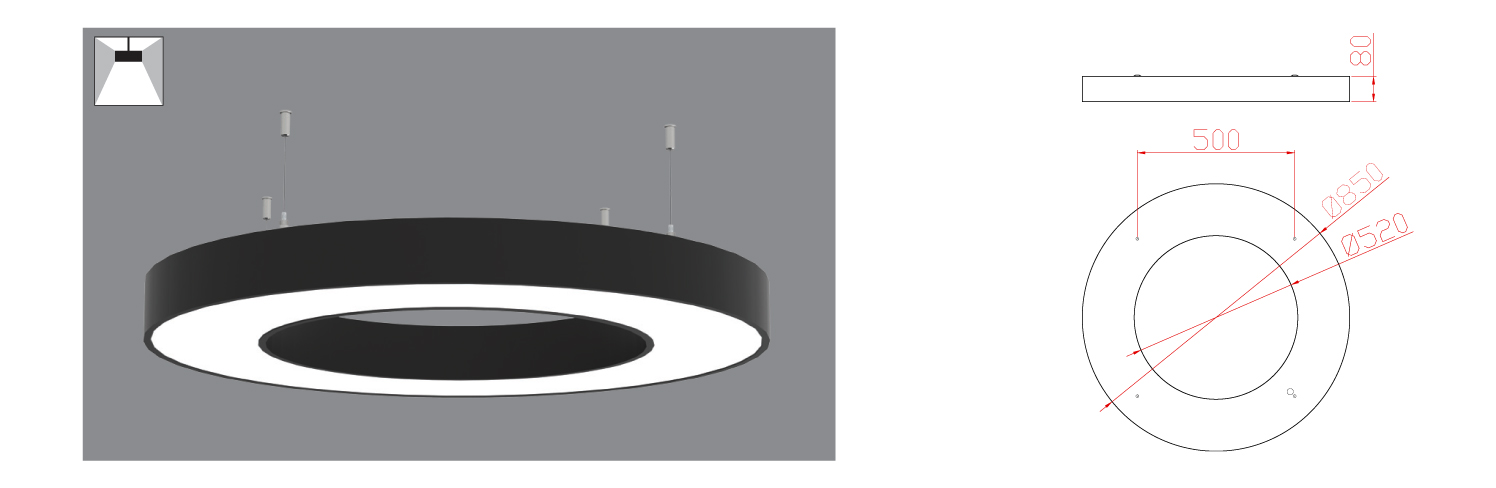

                                                          Dimension 850x60 mm
                                                          Power 73 W *
                                                          Luminous flux 8400 lm
                                                          Instalation Direct/Indirect
                                                          Holes for pendants (L2) 500x500 mm
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 10,5 kg
