Circular pendant luminaires with a height of 16 mm

ZCLED3GID66R840/LGPC720-MIKRO-C




    Variant

                                                        SKU: ZCLED3GID66R840/LGPC720-MIKRO-C Categories: ,

                                                        The luminaires are suitable for lighting offices, administrative and social spaces.

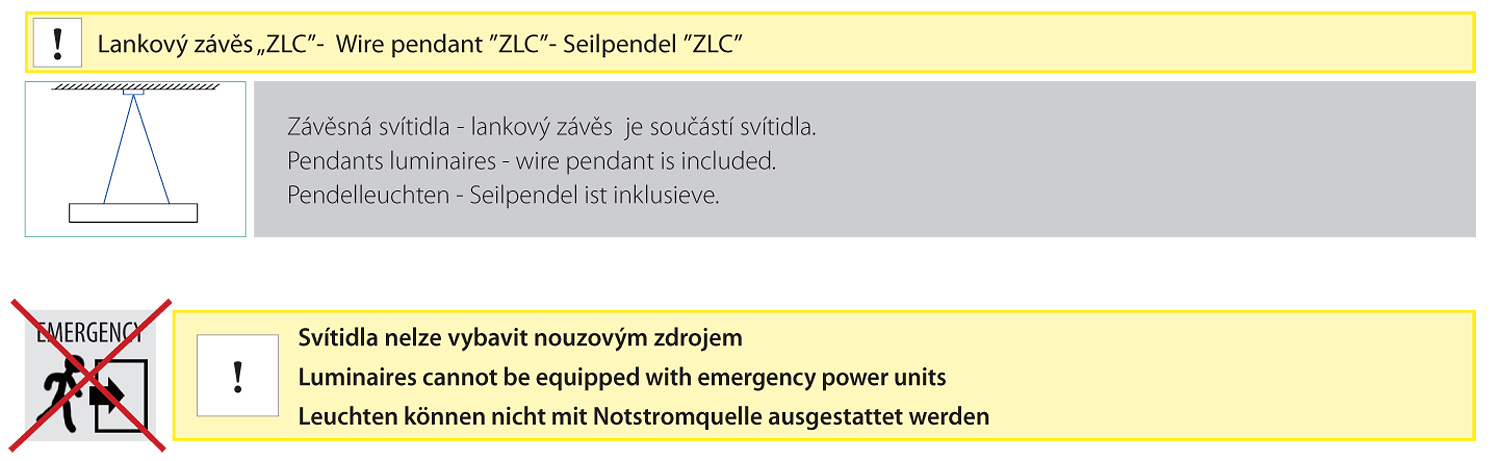

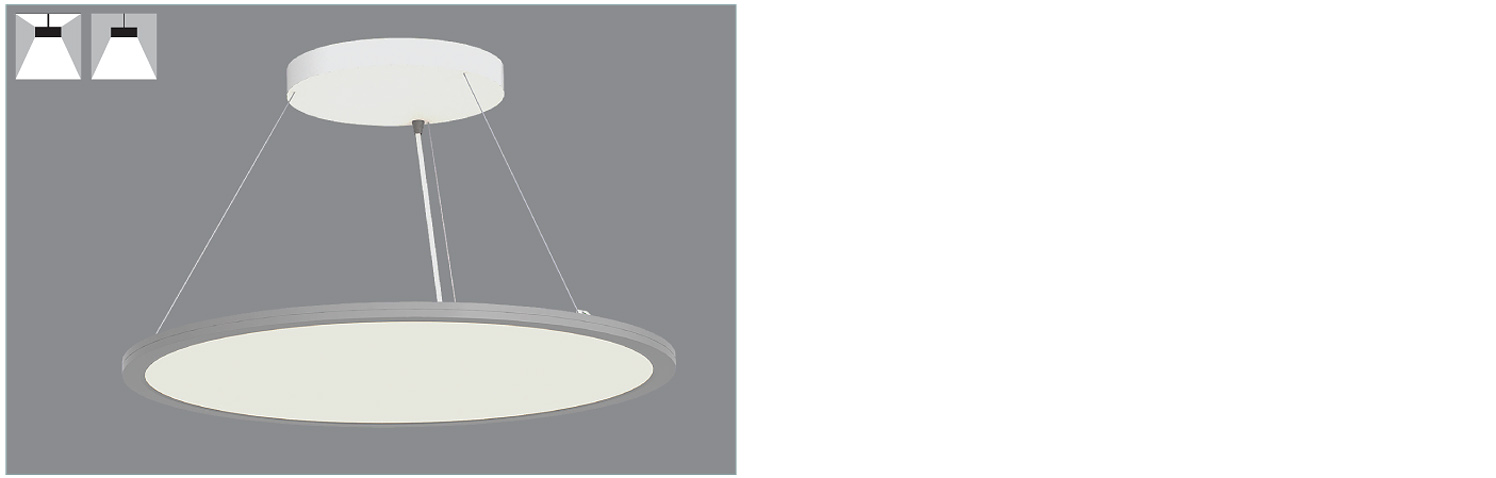

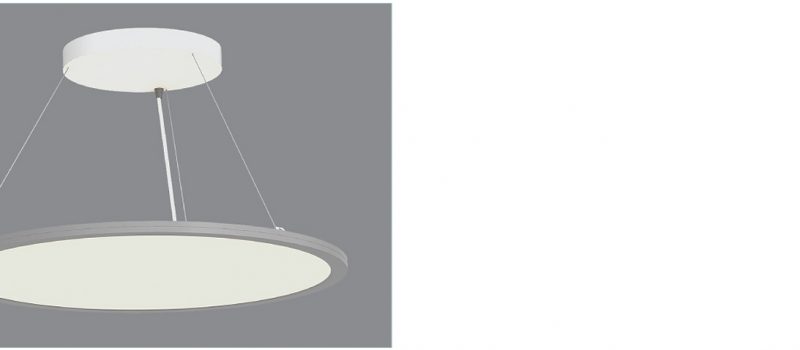

                                                        Suspended circular luminaires with a direct lighting component, are made of anodized profile with a height of 16 mm. The “ZLC” cable suspension is part of the luminaire.

                                                        The optical part of the luminaire consists of a microprismatic diffuser with a matt layer creating a homogeneous light without visible points from LEDs

                                                        If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                        Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                        We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                        Installed LED modules in the luminaire 3 x LED 10i2-840 + 1x LED 10i2A_3/4-840

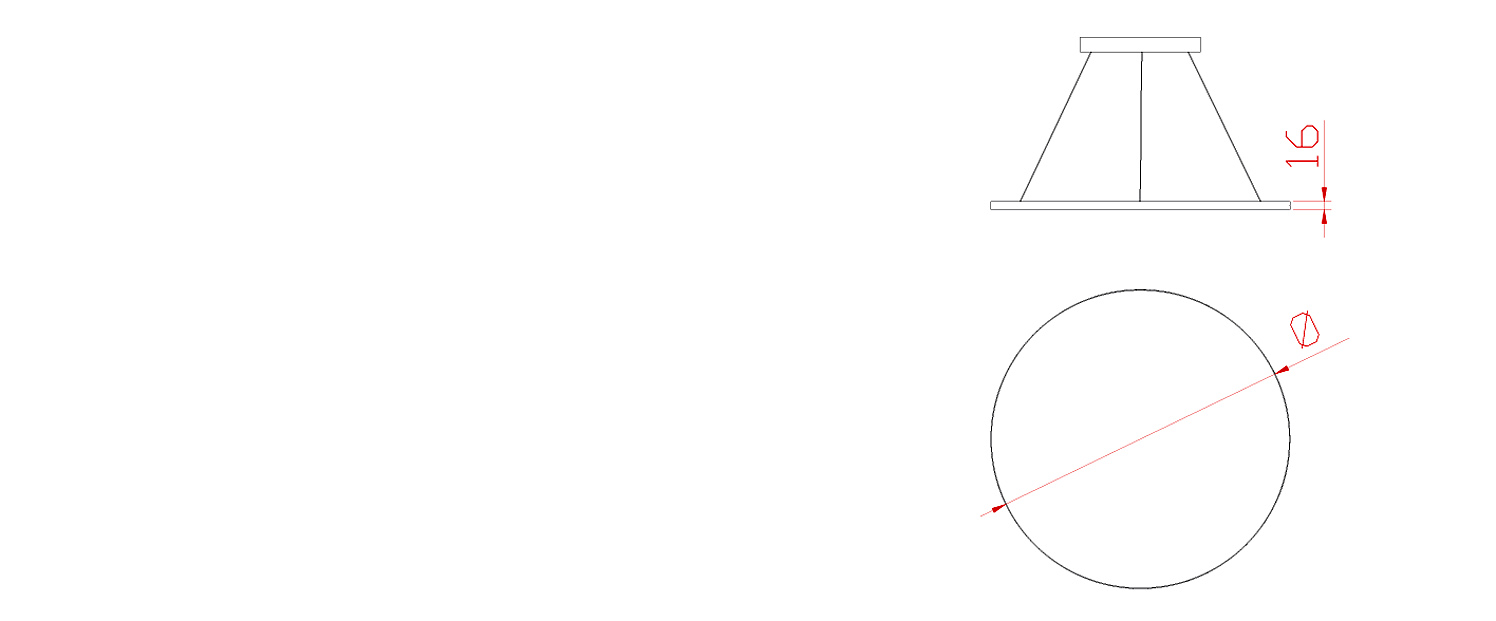

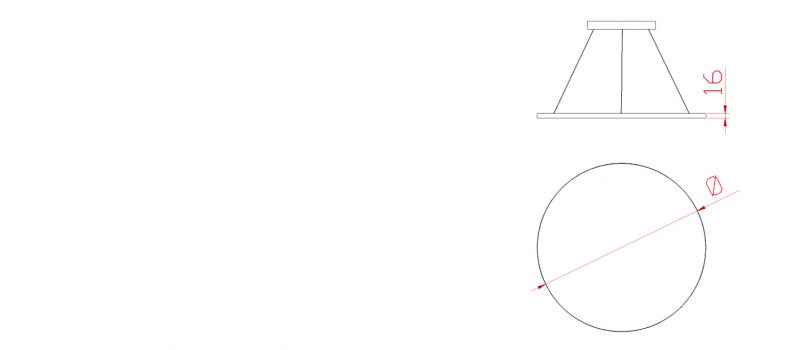

                                                        Dimension 720 x 16 mm
                                                        Power 33 W *
                                                        Luminous flux 3180 lm
                                                        Instalation Pendant
                                                        Protection IP 40
                                                        Color rendering index CRI > 80
                                                        Light colour CCT 4000 K
                                                        Ambient temperature 25 ˚C
                                                        Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                        Weight 6,7 kg
