Czech LED luminaires manufacturer

FOCUS IP40

Focus LED Pendant luminaires

ZCLED3G66L840/FOCUS60-IP40




    Variant

                                                              SKU: ZCLED3G66L840/FOCUS60-IP40 Categories: ,

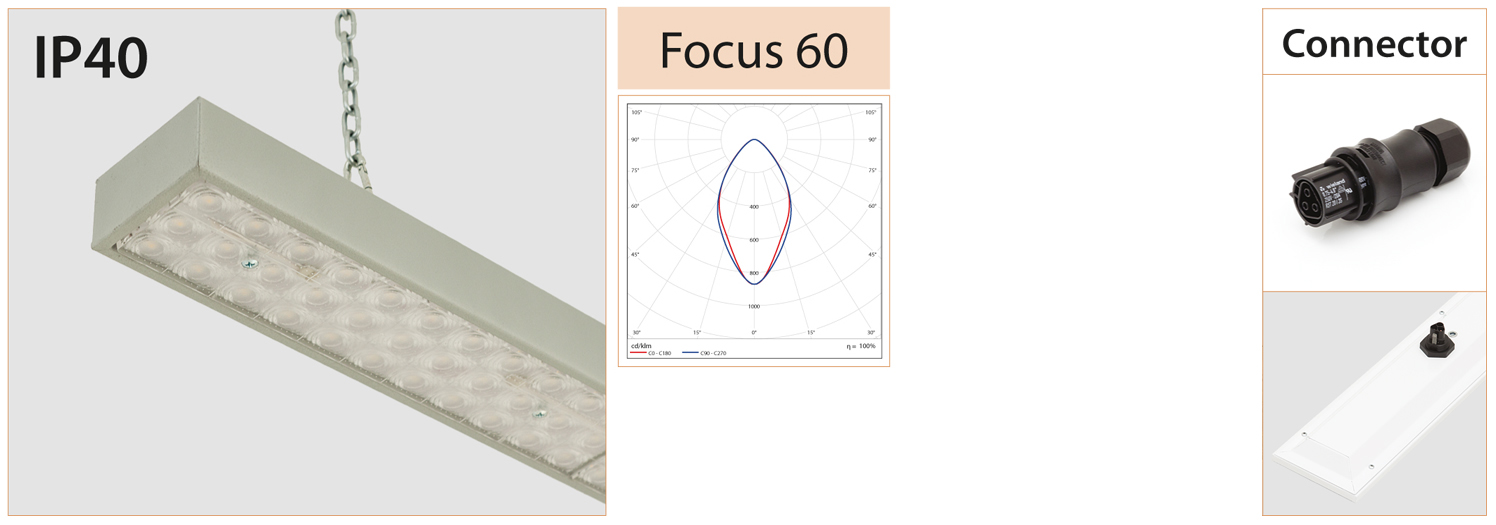

                                                              Luminaires are designed for production halls, workshops, garages, but also for shop and store lighting.

                                                              The luminaire body is made of white-coated steel metal. These luminaires are designed for suspending on wire pendants.

                                                              The optical part of the luminaire is made of a lens system with a radiating angle of 60 °.

                                                              If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                              If it is equipped with an autonomous emergency module it is 3W/1h (290 lm).

                                                              Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                              For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

                                                              Installed LED modules in the luminaire 5x LED Z60i-840
                                                              Dimension 75 x 1444 x 40 mm
                                                              Power 66 W *
                                                              Luminous flux 8675 lm
                                                              Instalation Pendant
                                                              Mounting holes (AxBxC) 1190 mm
                                                              Protection IP 40
                                                              Color rendering index CRI > 80
                                                              Light colour CCT 4000 K
                                                              Ambient temperature 25 ˚C
                                                              Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                              Weight 4 kg
