Czech LED luminaires manufacturer

BEST CLEAN M625

LED luminaires IP65 for M625 False Ceilings and Plasterboard

ZCLED3G65L840/17B-CLEAN-MK-IP65




    Variant

SKU: ZCLED3G65L840/17B-CLEAN-MK-IP65 Categories: ,

This type of luminaires is designed for extra clean rooms (operating rooms, ICUs, medicine prodcution) and other areas with high security requirements.

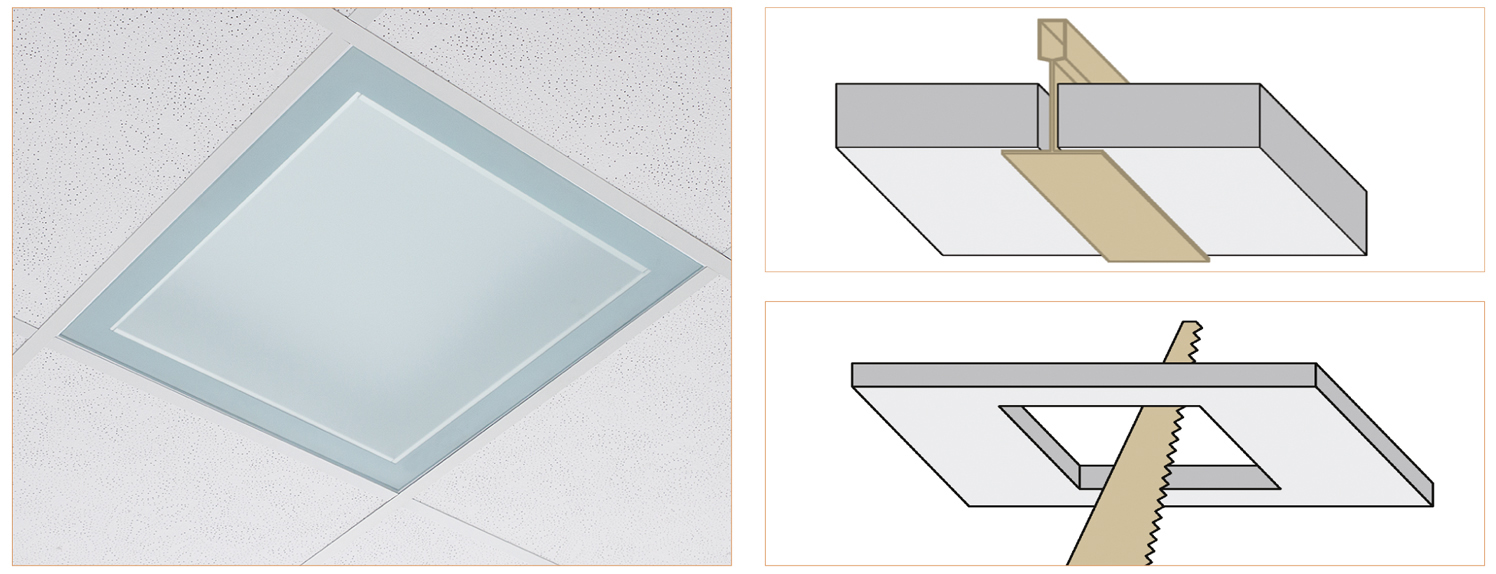

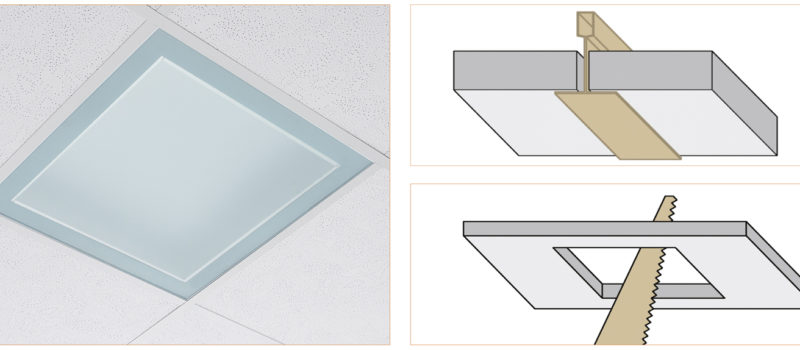

The basic body of the luminaire is made of steel sheet metal. 0.5 mm and white powder paint resistant to disinfectant and cleaning agents. Luminaires can be inserted into the classic M6625 cassette ceiling and plasterboard. To open the luminaire, it is necessary to use a suction pad (ordered separately)!

Optical cover made of tempered safety glass with microprismatic diffuser is attached to the luminaire by high quality neodymium permanent magnets. This cover is fixed to the luminiare by safety steel wires.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (265 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

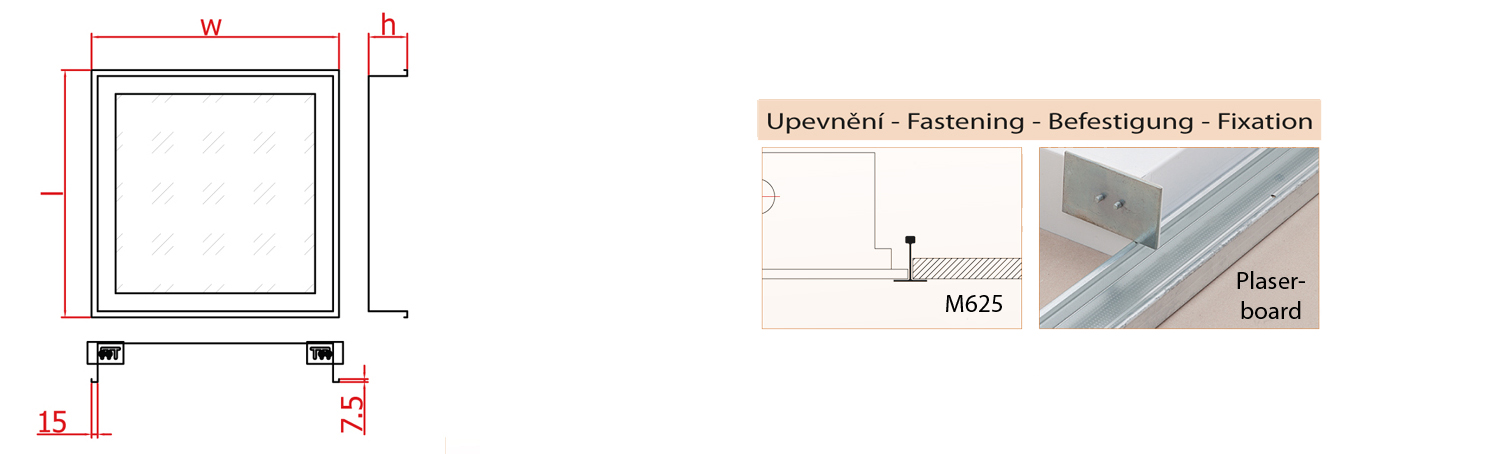

Dimension 310 x 1545 x 90 mm
Power 65 W
Luminous flux 5530 lm
Instalation M625,Plasteroard
Protection IP 65
Color rendering index CRI > 80
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime L90 B50 50.000 h
