Czech LED luminaires manufacturer

FOCUS IP54

Focus LED Pendant luminaires

ZCLED3G52L840/FOCUS90-IP54




    Variant

SKU: ZCLED3G52L840/FOCUS90-IP54 Categories: ,

Luminaires are designed for production halls, workshops, garages, but also for shop and store lighting.

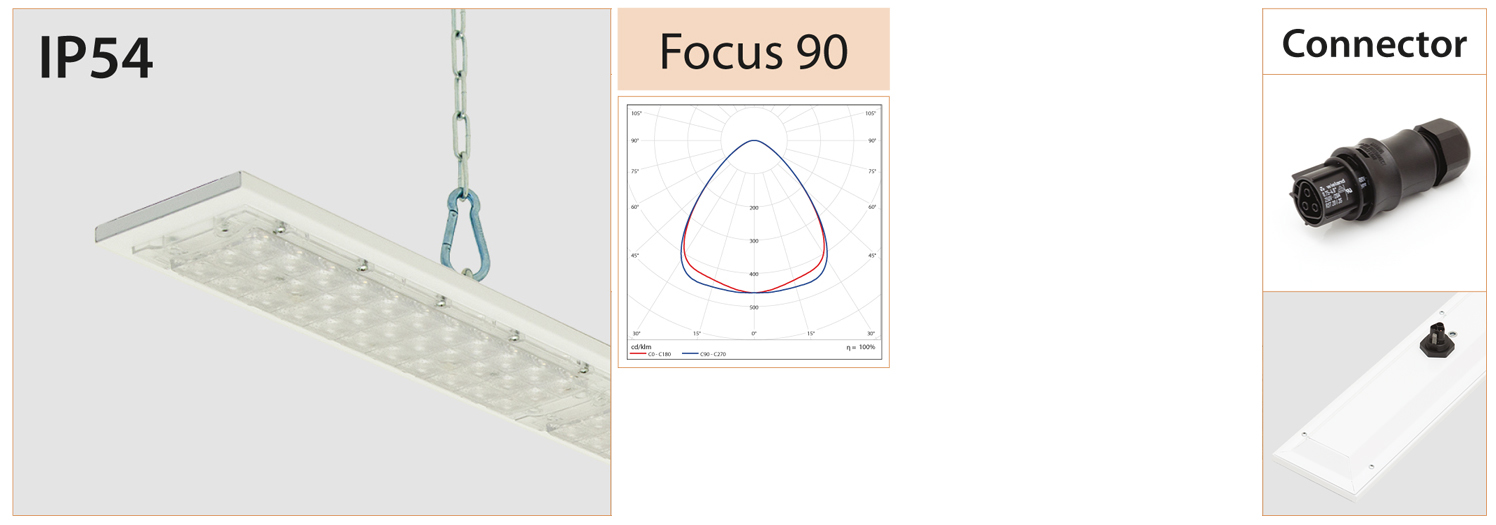

The luminaire body is made of white-coated steel metal. These luminaires are designed for suspending on wire pendants.

The optical part of the luminaire is made of a lens system with a radiating angle of 90 °.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (290 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

Installed LED modules in the luminaire 4x LED Z60i-840
Dimension 102 x 1316 x 40 mm
Power 52 W *
Luminous flux 6945 lm
Mounting holes (AxBxC) 905 mm
Instalation Pendant
Protection IP 54
Color rendering index CRI > 80
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
Weight 4 kg
