SLIM Direct/indirect LED luminaires

ZCLED3G47L840/SLIM-MIKRO-C




    Variant

                                                          SKU: ZCLED3G47L840/SLIM-MIKRO-C Categories: ,

                                                          Luminaires are suitable for offices, office spaces, school classes and stores.

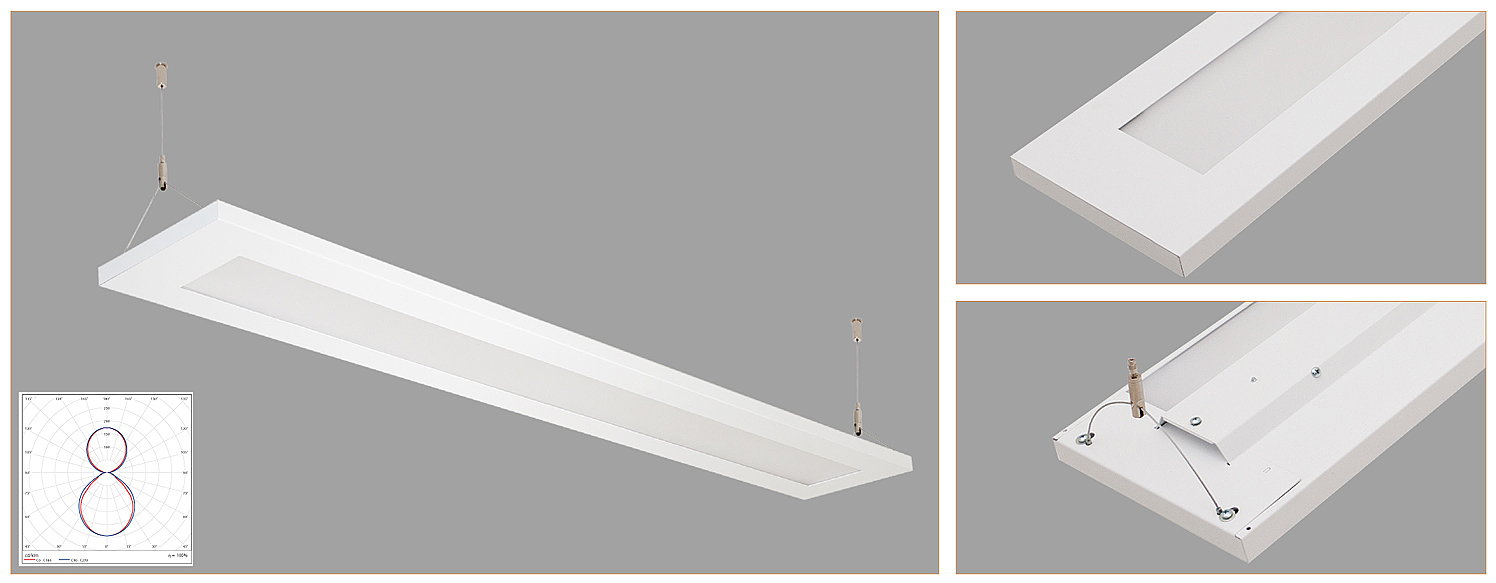

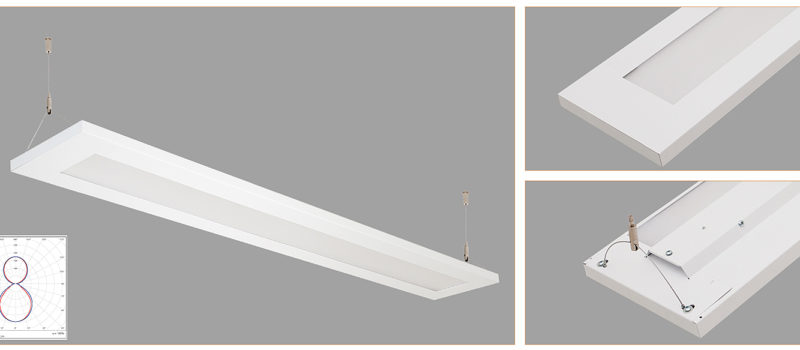

                                                          The luminaire body is made of steel-coated white metal. Luminaires are suspended by wire pendants.

                                                          The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is 3W/1h (245 lm).

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                          Installed LED modules in the luminaire 4x LED 07i3A40-840 + 1,5x LED 12i60-840

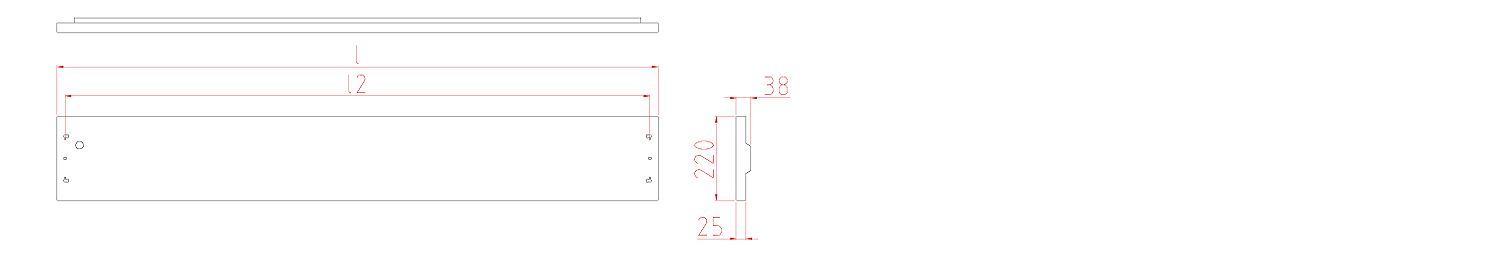

                                                          Dimension 220 x 1300 x 25 mm
                                                          Power 47 W *
                                                          Luminous flux 5930 lm
                                                          Instalation Direct/Indirect,Pendant
                                                          Holes for pendants (L2) 1248 mm
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 7 kg
