Czech LED luminaires manufacturer

REFIT

New LED luminaires instead of the existing fluorescent ones

ZCLED3G38L840/REFIT-MIKRO




    Variant

                                                            SKU: ZCLED3G38L840/REFIT-MIKRO Categories: ,

                                                            Luminaires are suitable for offices, office spaces, school classes and stores.

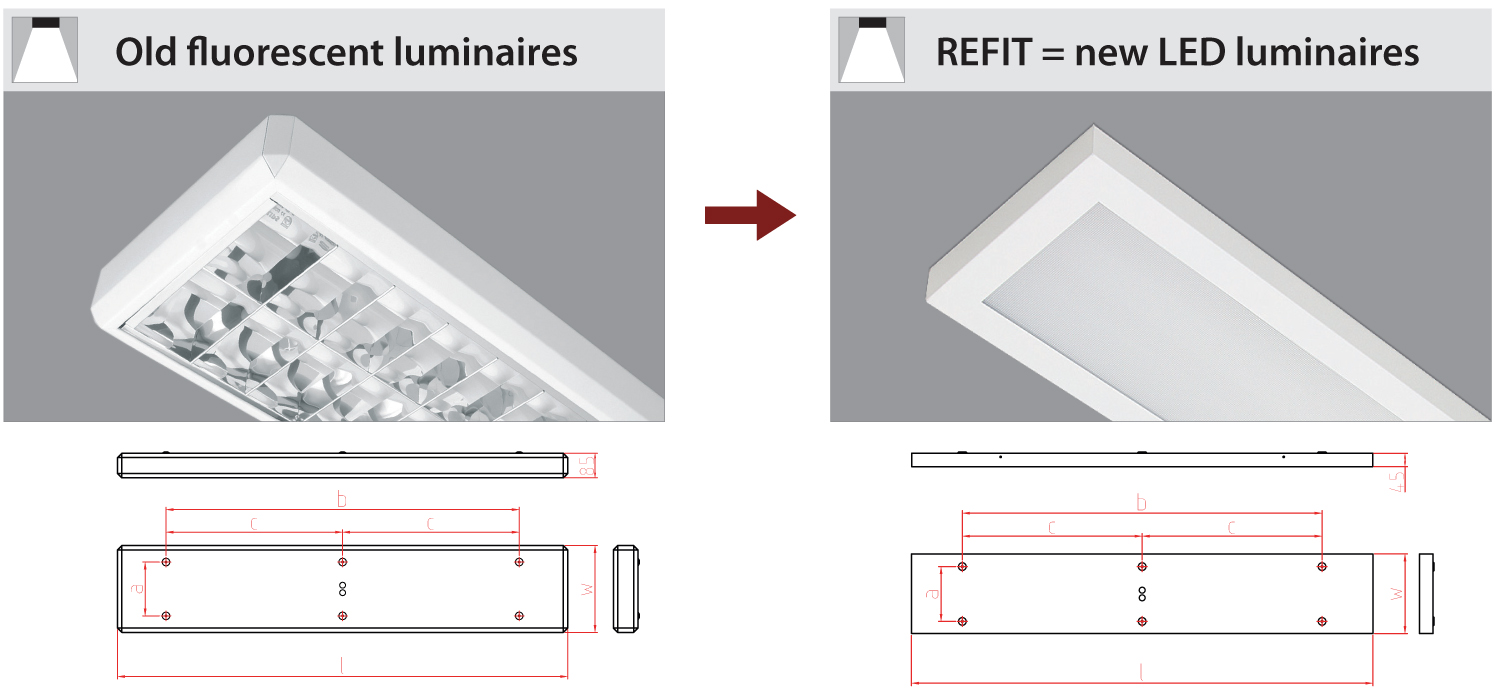

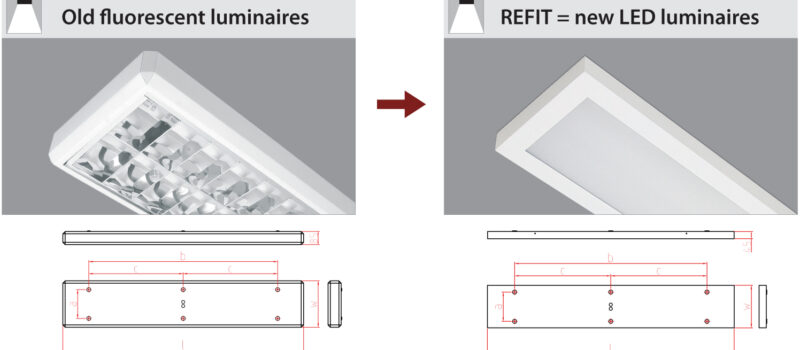

                                                            New LED luminaires to replace the existing 2×36 W fluorescent luminaires. Fixing holes in the same places/ holes for supply wires in the same places/ dimensions to cover the original contour on the ceiling/ adequate power (luminous flux).

                                                            The optical part of the luminaire consists of a microprismatic diffuser creating a visible LED structure.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is .

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                            Installed LED modules in the luminaire 4x LED 15i60-840
                                                            Dimension 295x1265x45 mm
                                                            Power 38 W *
                                                            Luminous flux 4640 lm
                                                            Instalation Pendant,Surface mounted
                                                            Mounting holes (AxBxC) 185x760 mm
                                                            Protection IP 40
                                                            Color rendering index CRI > 80
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 1 kg,4
