Simple LED Luminaires

ZCLED3G36L865/001-OPAL




    Variant

                                                              SKU: ZCLED3G36L865/001-OPAL Categories: ,

                                                              Luminaires for illuminating supermarkets, warehouses, and similar undemanding premises.

                                                              The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings or suspending on wire pendants. These luminaires are designed for mounting on solid ceilings. Alternatively, they can also be mounted on the wall by using a special holder (to be ordered separately) – see picture No. 1. Mounting and dismounting needs to be done with a special tool – the luminaire contains security screws – see picture No. 2

                                                              The optical part of the luminaire is made of a classic opal diffuser.

                                                              If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                              If it is equipped with an autonomous emergency module it is 3W/1h (285 lm).

                                                              Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                              For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

                                                              Installed LED modules in the luminaire 2x LED 15i60-865

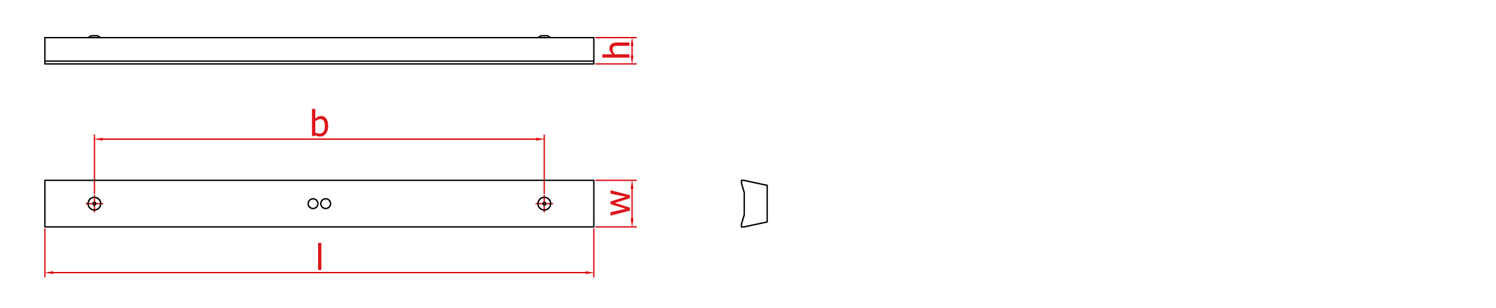

                                                              Dimension 96 x 1131 x 54 mm
                                                              Power 36 W *
                                                              Luminous flux 4850 lm
                                                              Instalation Pendant,Surface mounted
                                                              Mounting holes (AxBxC) 1026 mm
                                                              Protection IP 40
                                                              Color rendering index CRI > 80
                                                              Light colour CCT 6500 K
                                                              Ambient temperature 25 ˚C
                                                              Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                              Weight 2 kg,3
