FLAT 410

Surface mounted low UGR LED luminaires

ZCLED3G32L940/FLAT410-MIKRO-C




    Variant

SKU: ZCLED3G32L940/FLAT410-MIKRO-C Categories: ,

The luminaires have an excellent color rendering (CRI > 90), they meet the requirements for illumination of surgeries, graphic studios and other spaces with the demands of true color rendering.

The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings or suspending on wire pendants. They can be mounted directly on usual inflammable surfaces.

The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (245 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

We have been manufacturing LED luminaires suitable for medical practices since 2012. Among many realizations with our luminaires are for example Prague hospitals (Motol, IKEM, Na Bulovce), hospitals in Austria, Germany, Ireland, Switzerland…

Installed LED modules in the luminaire 8x LED 06i3A40-940

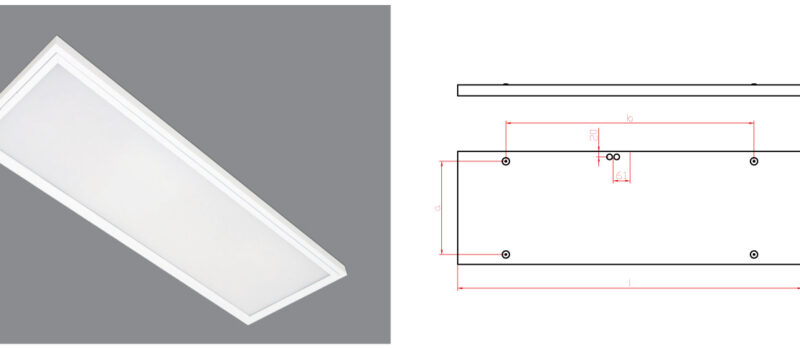

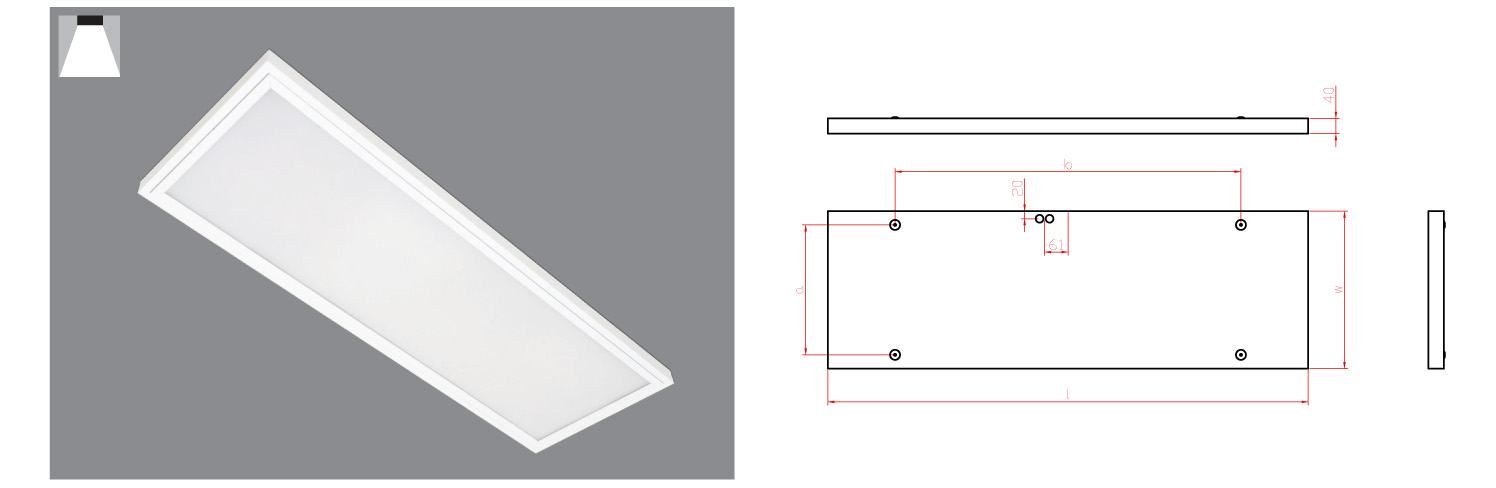

Dimension 410 x 1250 x 40 mm
Power 32 W *
Luminous flux 2990 lm
Instalation Surface mounted
Mounting holes (AxBxC) 340x900 mm
Protection IP 40
Color rendering index CRI > 90
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
Weight 6,9 kg
