ECO

ECO LED luminaires for Suspended Ceilings

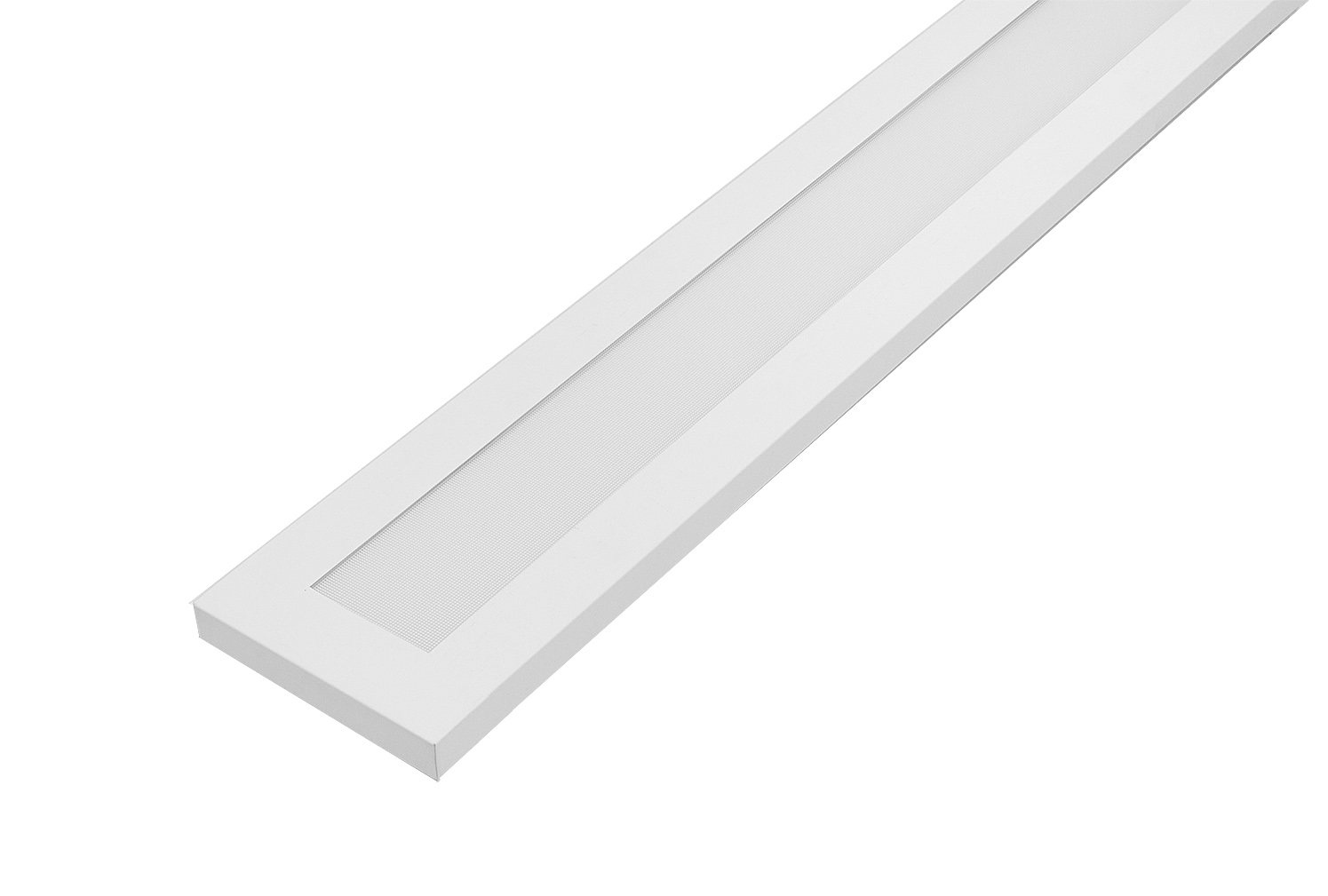

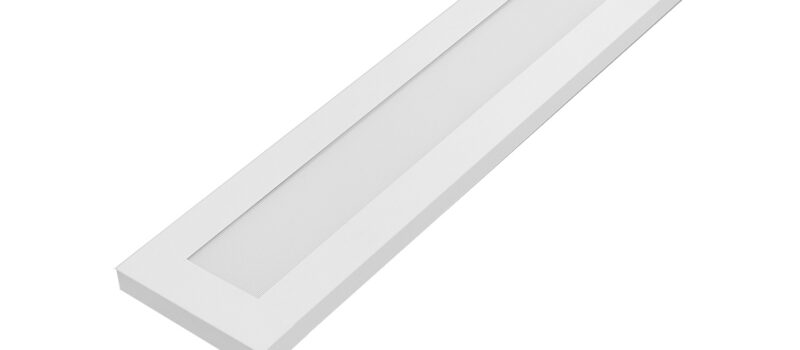

ZCLED3G32L840/ECO-MIKRO-C-195x1245mm-3230lm




    Variant

SKU: ZCLED3G32L840/ECO-MIKRO-C-195x1245mm-3230lm Categories: ,

Luminaires are suitable for offices, office spaces, school classes and stores.

The luminaire body is made of white-coated steel metal. The luminaires can be inserted into a classic cassette ceiling (cannot be installed in plasterboard).

The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (230 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

Installed LED modules in the luminaire 2x LED 15i60-840
Dimension 195 x 1245 x 52 mm
Power 32 W *
Luminous flux 3230 lm
Instalation M625
Protection IP 40
Color rendering index CRI > 80
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
Weight 4,5 kg
