FLAT

FLAT LED Surface mounted luminaires

ZCLED3G27L830/FLAT250/MIKRO-C




    Variant

                                                      SKU: ZCLED3G27L830/FLAT250/MIKRO-C Categories: ,

                                                      Luminaires are suitable for offices, office spaces, school classes and stores.

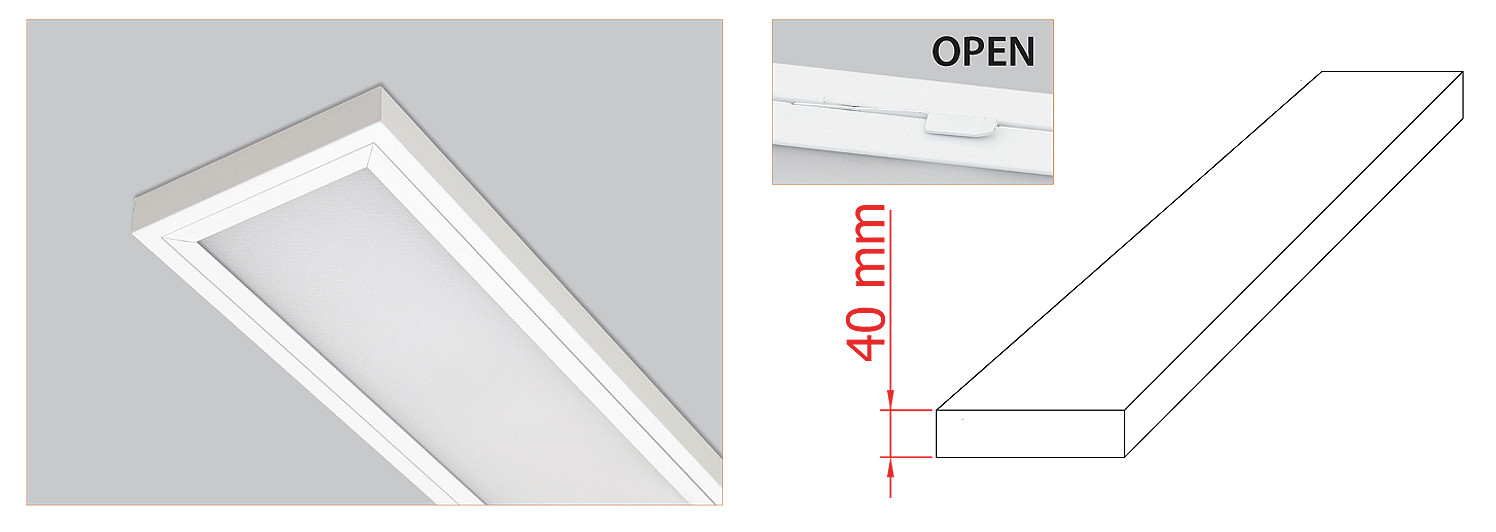

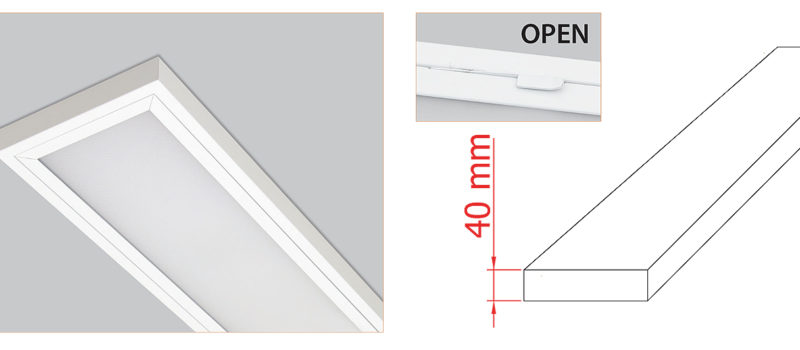

                                                      The luminaire body is made of white-coated steel metal. Their height is only 40mm. These luminaires are designed for mounting on solid ceilings or suspending on wire pendants.

                                                      The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                      If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                      If it is equipped with an autonomous emergency module it is 3W/1h (230 lm).

                                                      Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                      We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                      Dimension 250 x 690 x 40 mm
                                                      Power 27 W
                                                      Luminous flux 2636 lm
                                                      Instalation Pendant,Surface mounted

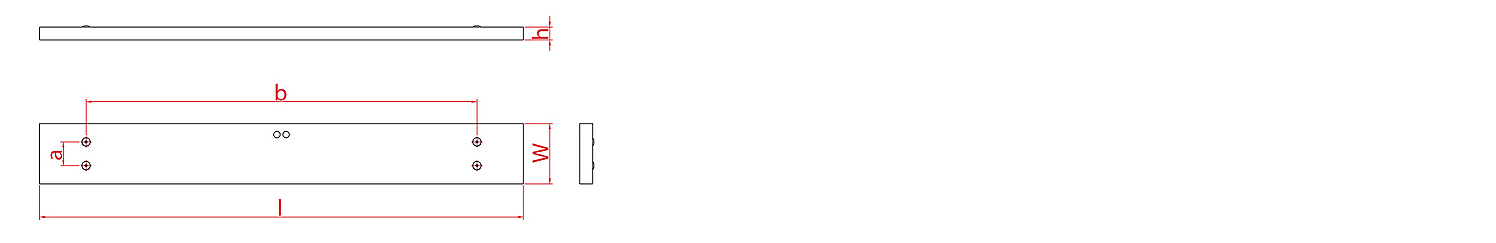

                                                      Mounting holes (AxBxC) 178x500 mm
                                                      Protection IP 40
                                                      Color rendering index CRI > 80
                                                      Light colour CCT 3000 K
                                                      Ambient temperature 25 ˚C
                                                      Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                      Weight 5 kg
