Czech LED luminaires manufacturer

AL 51

Aluminum asymmetric luminaires narrow 51 mm.

ZCLED3G23L840/AL51-OPTAS-B




    Variant

                                                          SKU: ZCLED3G23L840/AL51-OPTAS-B Categories: , ,

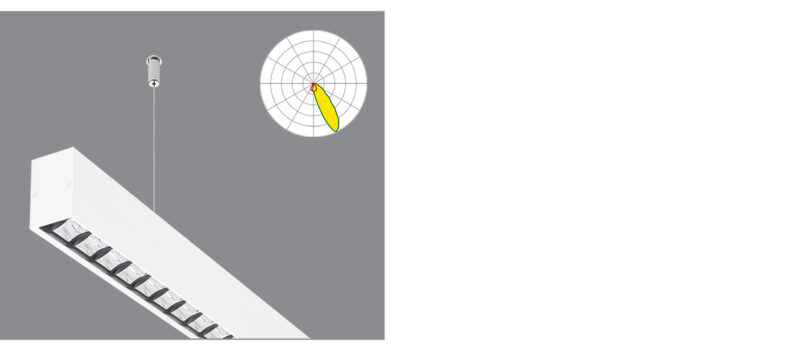

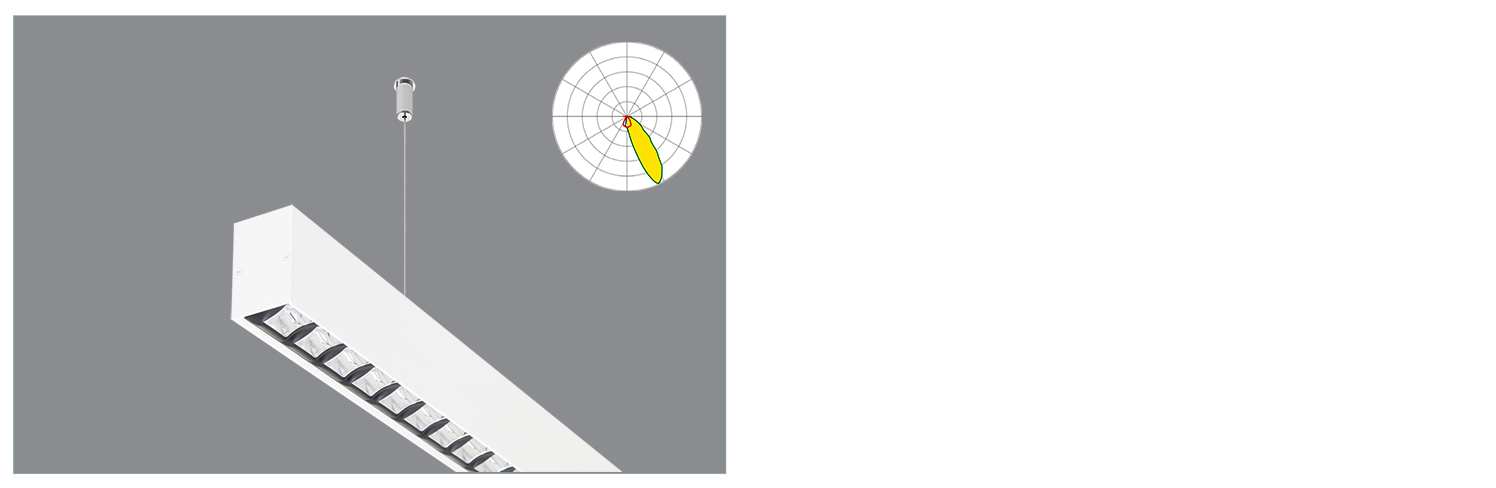

                                                          Luminaires with asymmetrical emission characteristics are suitable for illuminating vertical surfaces such as black boards and paintings.

                                                          The 51 mm narrow luminaires with asymmetrical radiation characteristics are made of aluminium profile, which is powder coated white.

                                                          The optical part of the luminaire consists of a lens supplemented by a plastic grid. The plastic grille is black.

                                                          If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                          The luminaire cannot be equipped with an emergency module!

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                          Installed LED modules in the luminaire 2x LED 16L14-840
                                                          Dimension 51 x 1125 x 81 mm
                                                          Power 23 W *
                                                          Luminous flux 2410 lm
                                                          Instalation Pendant,Surface mounted
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 2,2 kg
