PRAKTIK LED luminaires

ZCLED3G22L940/PRAKTIK-MIKRO-C




    Variant

                                                              SKU: ZCLED3G22L940/PRAKTIK-MIKRO-C Categories: ,

                                                              Luminaires are suitable for offices, office spaces, school classes and stores.

                                                              The body of the luminaire is made of steel sheet of thickness. 0,6 mm and coated with white powder paint. Thanks to the ingenious design of the tilting cover, it is easy to mount to the ceiling.

                                                              The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                              If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                              If it is equipped with an autonomous emergency module it is .

                                                              Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                              We have been manufacturing LED luminaires suitable for medical practices since 2012. Among many realizations with our luminaires are for example Prague hospitals (Motol, IKEM, Na Bulovce), hospitals in Austria, Germany, Ireland, Switzerland…

                                                              Installed LED modules in the luminaire 2x LED 15i60-940

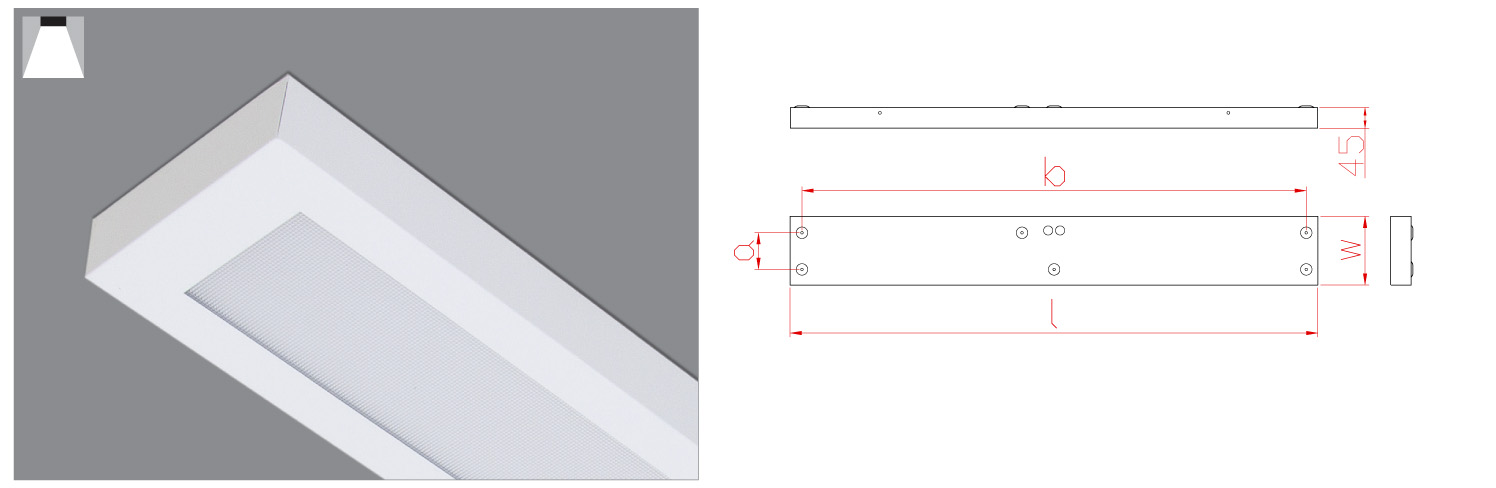

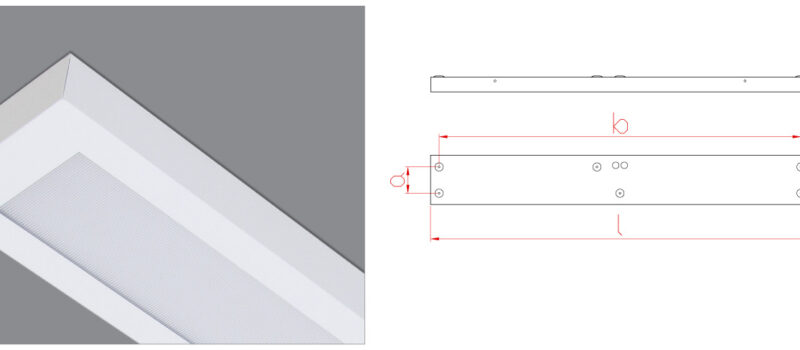

                                                              Dimension 150x1152x45 mm
                                                              Power 22 W *
                                                              Luminous flux 1905 lm
                                                              Instalation Pendant,Surface mounted
                                                              Mounting holes (AxBxC) 80x1100 mm
                                                              Protection IP 40
                                                              Color rendering index CRI > 90
                                                              Light colour CCT 4000 K
                                                              Ambient temperature 25 ˚C
                                                              Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                              Weight 3 kg
