Czech LED luminaires manufacturer

AL 57

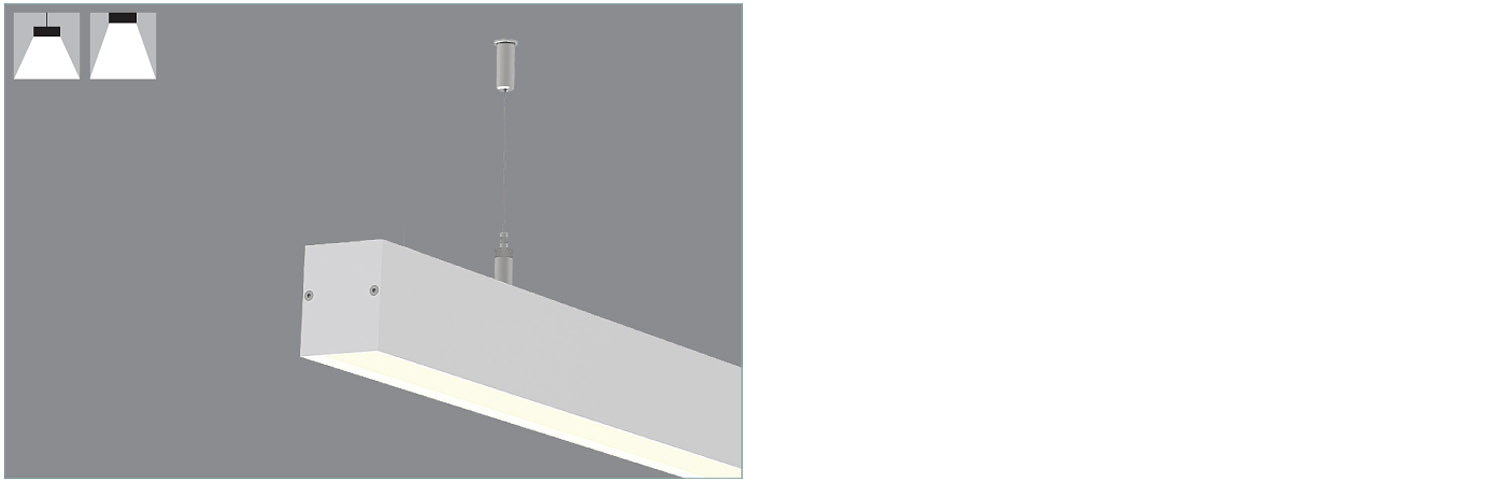

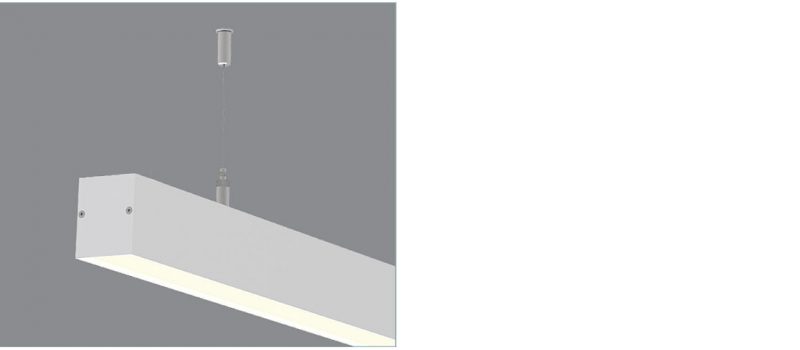

Aluminum pendant luminairesnarrow 57 mm.

ZCLED3G12L840/AL57-MIKRO-C




    Variant

                                                        The luminaires are suitable for lighting offices, administrative and social spaces.

                                                        The luminaires are suitable for lighting offices, administrative and social spaces.The 57 mm narrow luminaires are made of aluminum profile, which is provided with white powder paint.The luminaires can be mounted directly on the ceiling (it can be mounted directly on usual inflammable surfaces) or suspended using cable suspensions. Cable suspensions are part of the luminaire.

                                                        The optical part of the luminaire consists of a microprismatic diffuser with a matt layer creating a homogeneous light without visible points from LEDs.

                                                        If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                        Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                        We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                        Installed LED modules in the luminaire 0

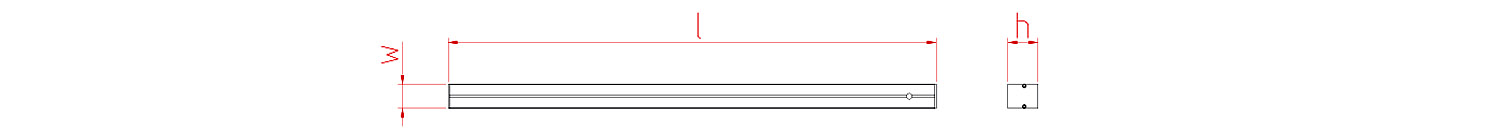

                                                        Dimension 57 x 565 x 70 mm
                                                        Power 12 W *
                                                        Luminous flux 1090 lm
                                                        Instalation Pendant
                                                        Protection IP 40
                                                        Color rendering index CRI > 80
                                                        Light colour CCT 4000 K
                                                        Ambient temperature 25 ˚C
                                                        Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                        Weight 1,2 kg
