Czech LED luminaires manufacturer

LOUVRE M625

LED luminaires with Louvre for M625 Suspended Ceilings and Plasterboard

ZCLED3G1-18L940/M625-LOS




    Variant

SKU: ZCLED3G1-18L940/M625-LOS Categories: , , ,

The luminaires have an excellent color rendering (CRI > 90), they meet the requirements for illumination of surgeries, graphic studios and other spaces with the demands of true color rendering.

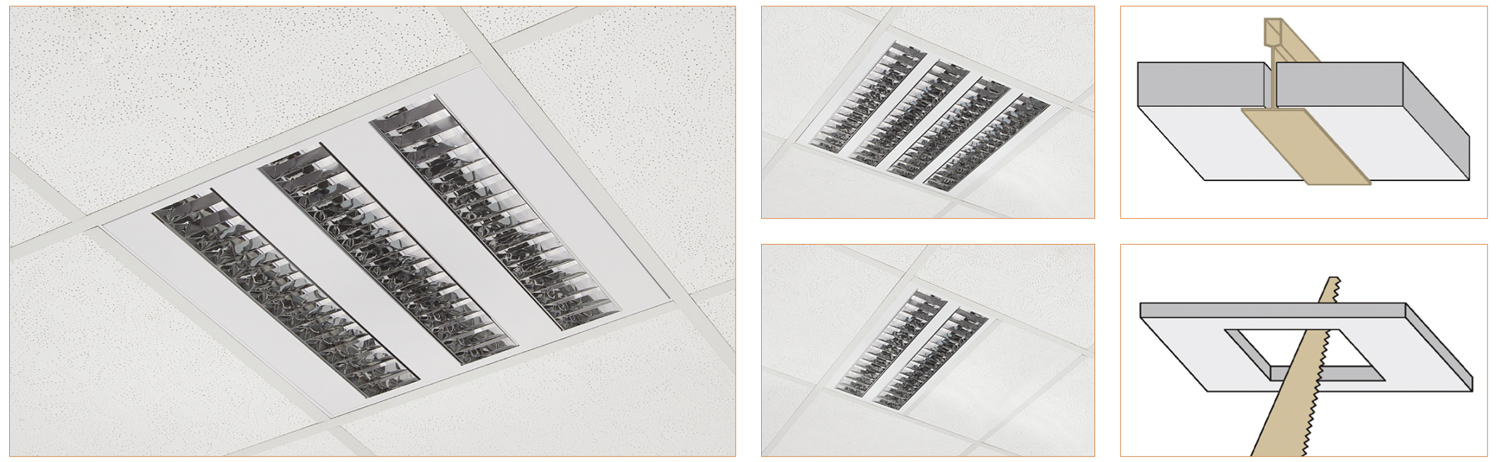

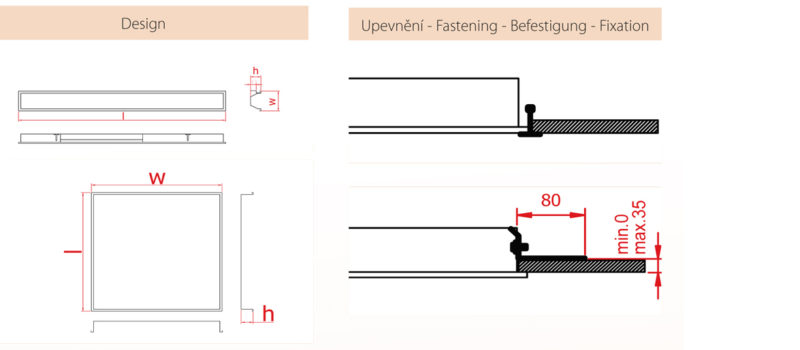

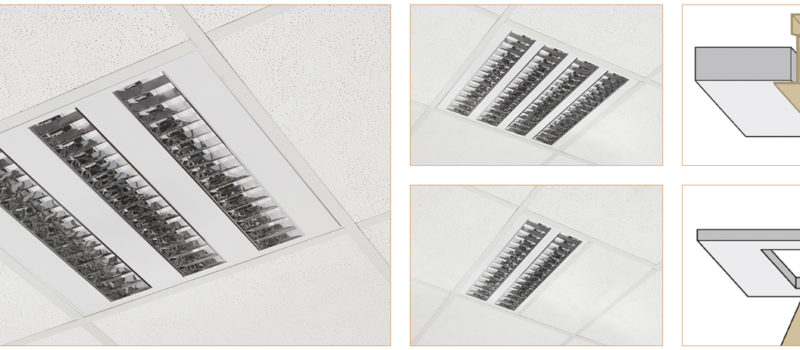

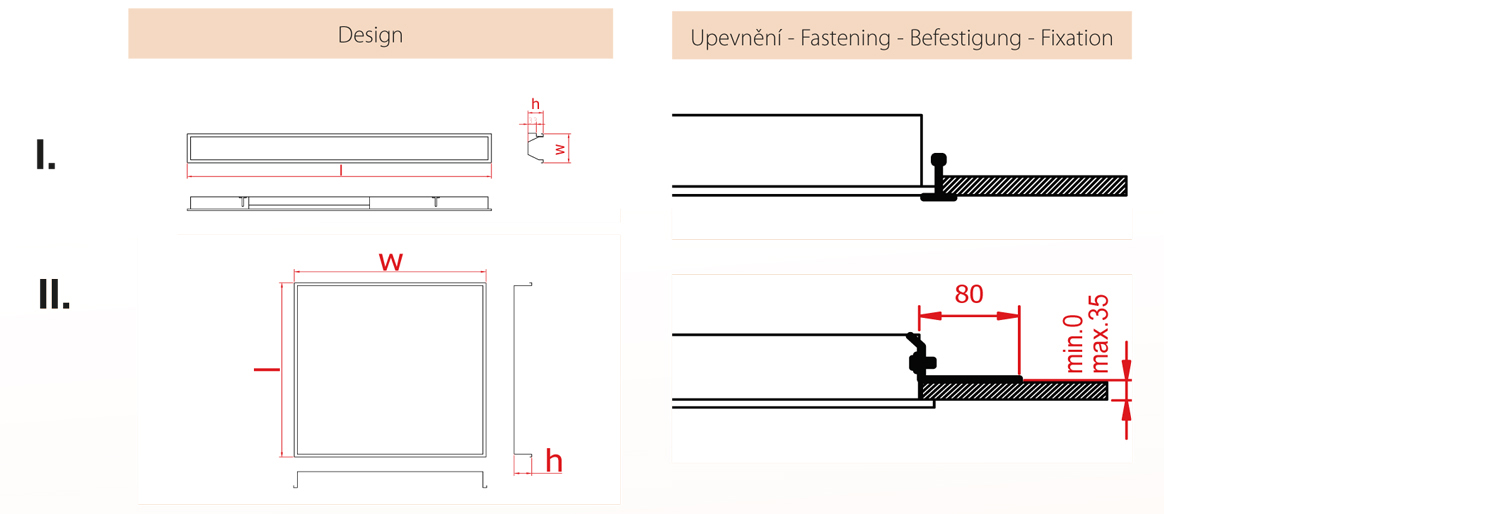

The luminaire body is made of white-coated steel metal. Luminaires can be mounted into M625 panel suspended ceilings as well as plasterboard. You need to order a mounting kit for mounting into plasterboard!

The optical section of the luminaire is formed of a quality optical parabolic louvre with an opal diffuser for reduces of the glare. The louvre provides optimal light distribution for contrast vision without tiring of the eyesight.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (330 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

Dimension 125 x 1545 x 60 mm
Power 18 W
Luminous flux 2375 lm
UGR 15,1
Instalation M625,Plasteroard
Protection IP 20
Color rendering index CRI > 90
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime L90 B50 50.000 h
