Czech LED luminaires manufacturer

OCTAGON

Industrial luminaires

ZCLED100R840/OCTAGON-50-IP65




    Variant

                                                  SKU: ZCLED100R840/OCTAGON-50-IP65 Categories: ,

                                                  Industrial luminaires designed for new installations, but also as a replacement for existing discharge lamps.

                                                  The body of the luminaire is made of sheet steel, thickness 0.5 mm and powder-coated RAL 9005 – black (other versions on request).

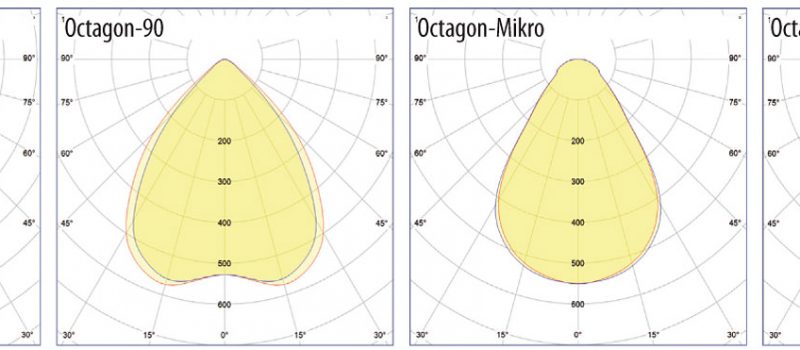

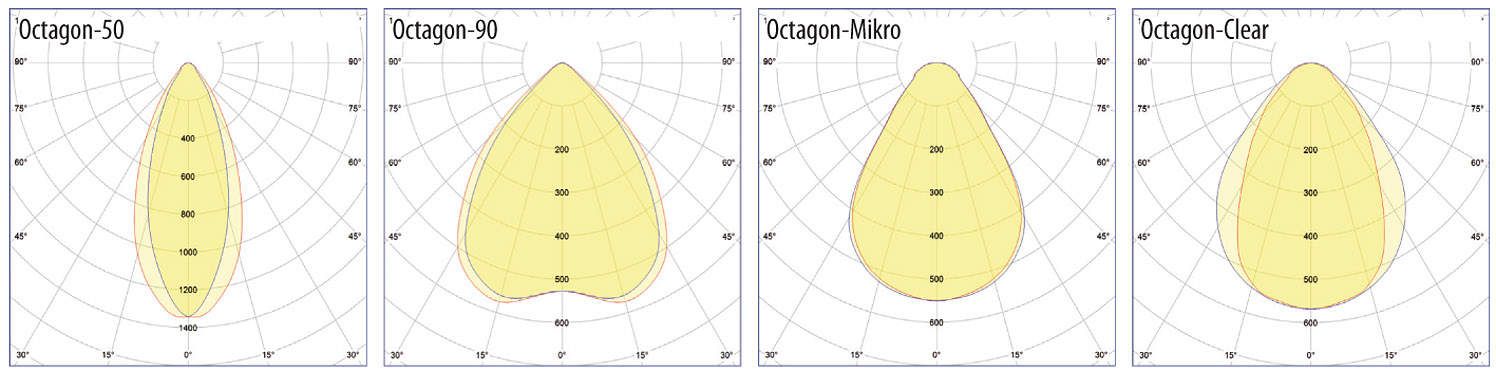

                                                  Optical part: the luminaire can be ordered in the variants Clear LED – “C”, Microprismatic cover – “M”, lenses with a beam angle of 50˚ – “50” and an angle of 90˚ – “90”.

                                                  If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                  The luminaire is equipped with high-quality LEDs of the Samsung brand, for the power supply of which we use drivers only from renowned manufacturers Helvar, Tridonic, OSRAM and MeanWell.

                                                  Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                  For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

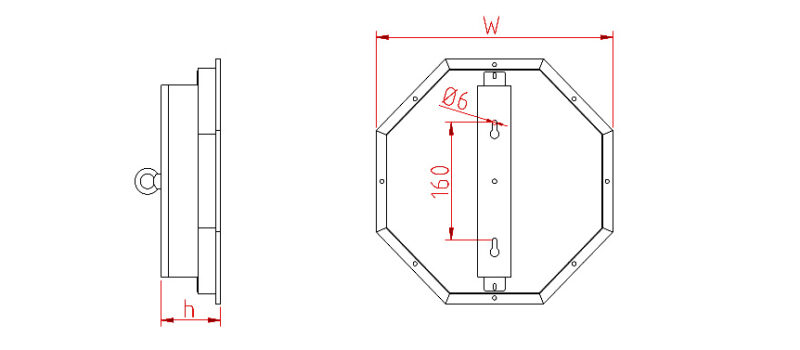

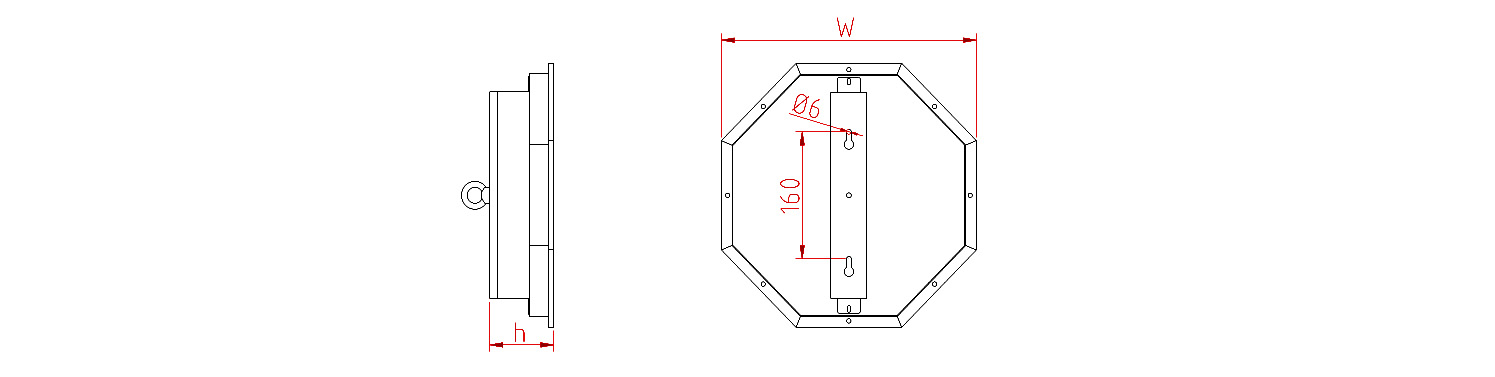

                                                  Dimension 335 x 335 x 85 mm
                                                  Power 100 W
                                                  Luminous flux 14009 lm
                                                  Instalation Pendant,Surface mounted
                                                  Protection IP 65
                                                  Color rendering index CRI > 80
                                                  Light colour CCT 4000 K
                                                  Ambient temperature 25 ˚C
                                                  Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                  Weight 4,5 kg

                                                  Industrial luminaires designed for new installations, but also as a replacement for existing discharge lamps.

                                                  The body of the luminaire is made of sheet steel, thickness 0.5 mm and powder-coated RAL 9005 – black (other versions on request).

                                                  Optical part: the luminaire can be ordered in the variants Clear LED – “C”, Microprismatic cover – “M”, lenses with a beam angle of 50˚ – “50” and an angle of 90˚ – “90”.

                                                  If the luminaire is dimmable, it is dimmable by the DALI digital system.

                                                  The luminaire is equipped with high-quality LEDs of the Samsung brand, for the power supply of which we use drivers only from renowned manufacturers Helvar, Tridonic, OSRAM and MeanWell.

                                                  Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                  For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

                                                  Dimension 335 x 335 x 85 mm
                                                  Power 100 W
                                                  Luminous flux 14009 lm
                                                  Instalation Pendant,Surface mounted
                                                  Protection IP 65
                                                  Color rendering index CRI > 80
                                                  Light colour CCT 4000 K
                                                  Ambient temperature 25 ˚C
                                                  Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                  Weight 4,5 kg
