Czech LED luminaires manufacturer

WINGS KP

LED Surface mounted (ceiling) luminaires

ZCKPLED68L840/D




    Variant

                                                      SKU: ZCKPLED68L840/D Categories: ,

                                                      Luminaires are suitable for offices, office spaces, school classes and stores.

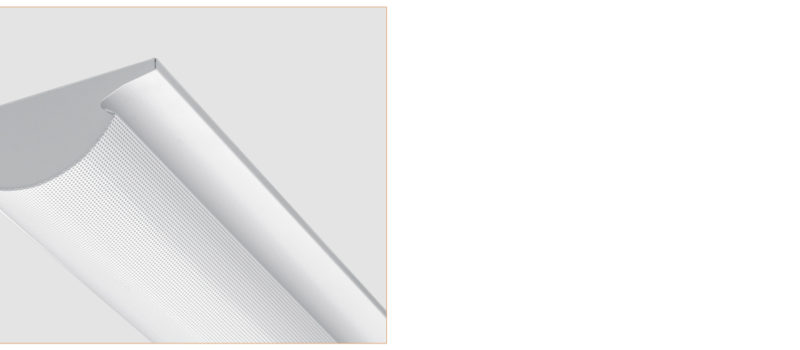

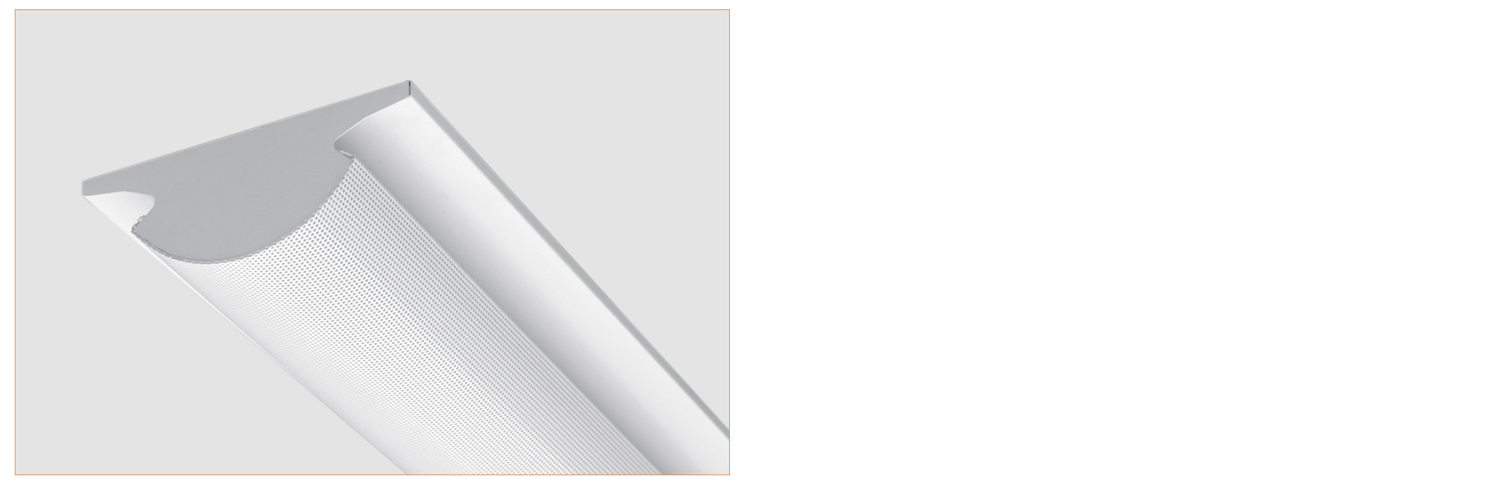

                                                      These LED luminaires emit a mellow light. The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings or suspending on wire pendants.

                                                      The optical part is made of a perforated sheet with an opal diffuser.

                                                      If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                      If it is equipped with an autonomous emergency module it is 3W/1h (125 lm)

                                                      Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                      We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                      Dimension 240 x 1245 x 95 mm
                                                      Power 68 W
                                                      Luminous flux 3275 lm
                                                      Instalation Direct/Indirect,Pendant,Surface mounted

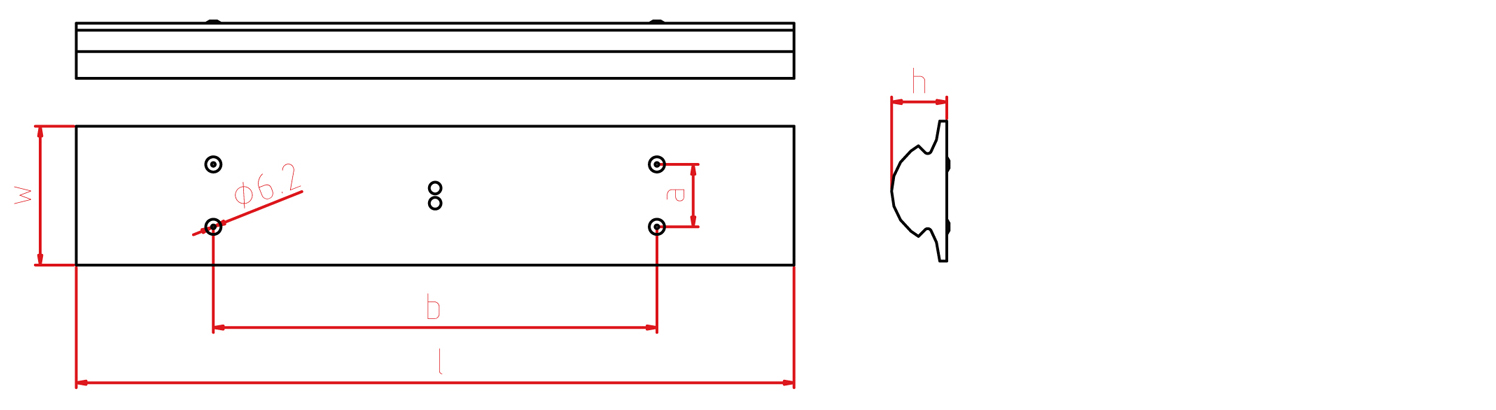

                                                      Mounting holes (AxBxC) 107x760 mm
                                                      Protection IP 40
                                                      Color rendering index CRI > 80
                                                      Light colour CCT 4000 K
                                                      Ambient temperature 25 ˚C
                                                      Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                      Weight 5 kg,6
