Czech LED luminaires manufacturer

ROUND

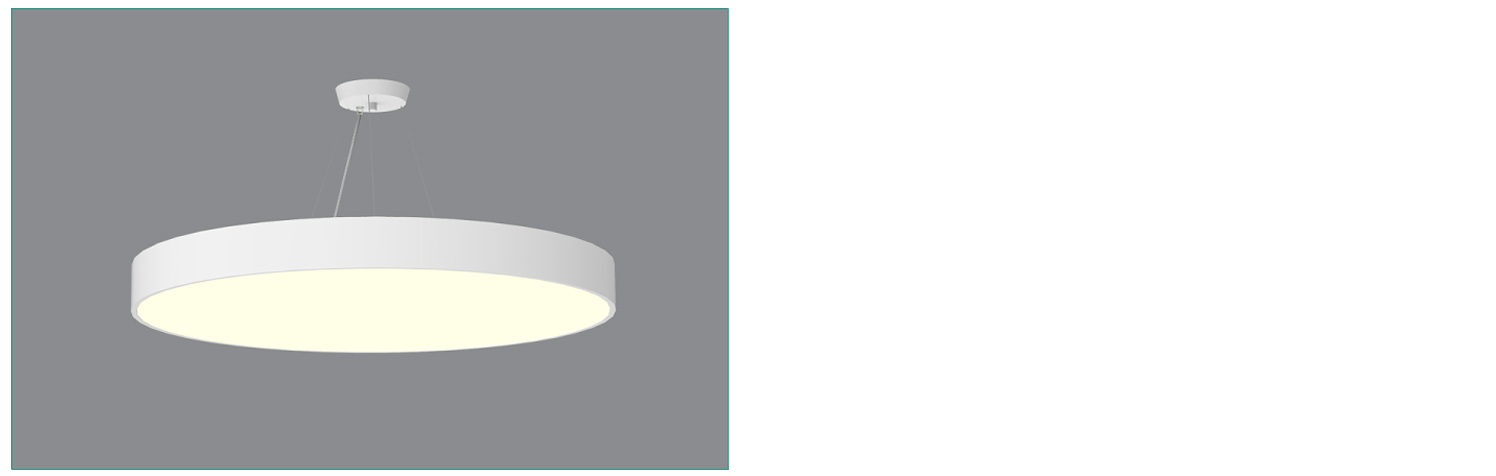

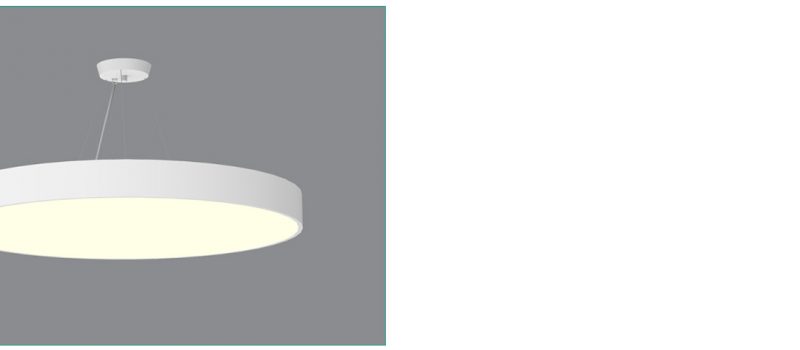

Circular luminaires, both direct/indirect

ZCLED3GID126R840/R850-MIKRO-C




    Variant

SKU: ZCLED3GID126R840/R850-MIKRO-C Categories: ,

The luminaires are suitable for lighting offices, administrative and social spaces.

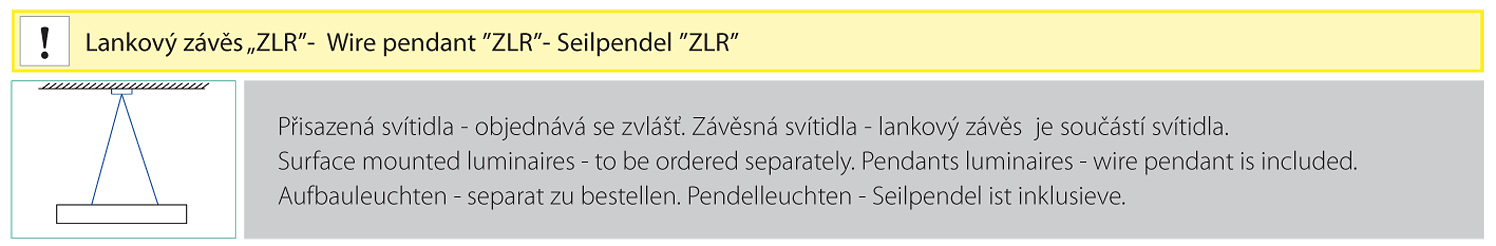

The luminaires are made of aluminum profile and provided with white powder paint.Pendant luminaires, the ZLR wire pendant is included in the package.

The optical part of the luminaire consists of a microprismatic diffuser with a matt layer creating a homogeneous light without visible points from the LED.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (180 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

Installed LED modules in the luminaire 2x LED R595-840 + 2x LED R850-840 + 4x LED 12i80-840

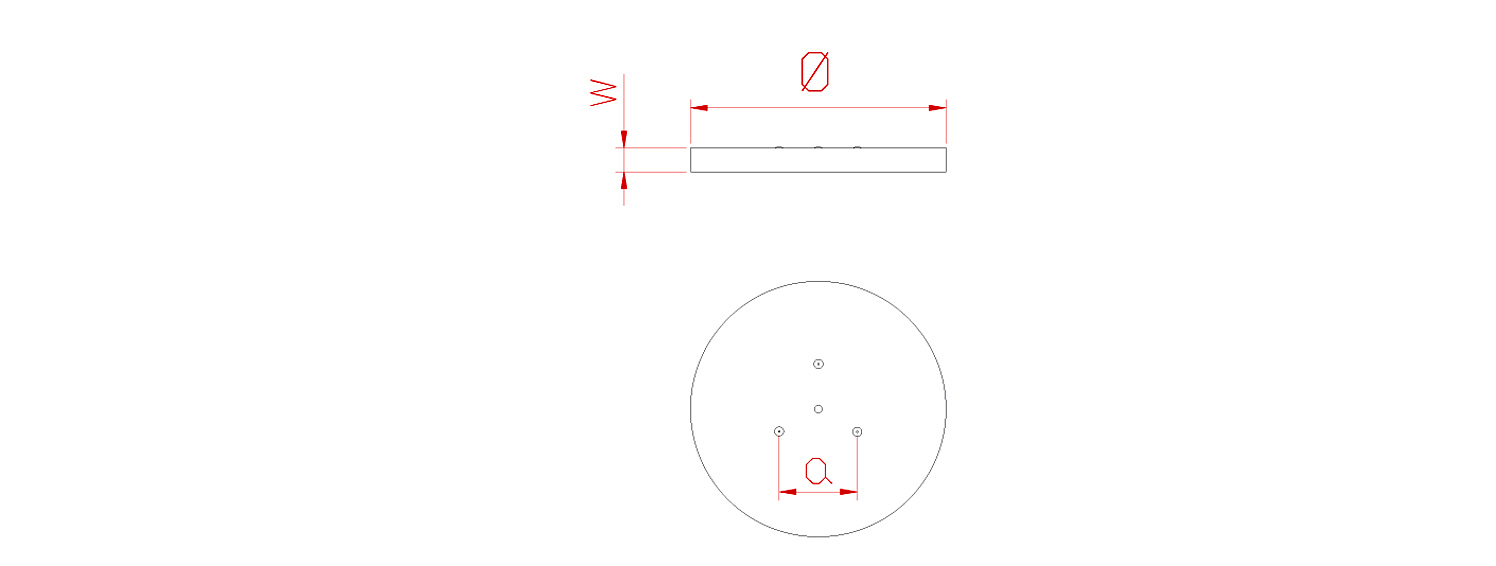

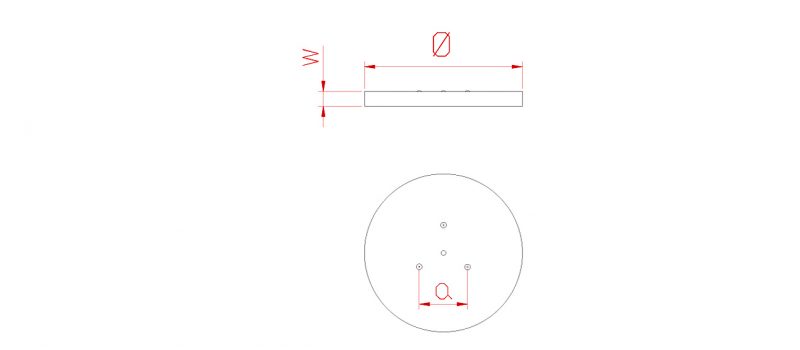

Dimension 850x80 mm
Power 106+20 W *
Luminous flux 13610 lm
Instalation Pendant,Surface mounted
Color rendering index CRI > 80
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
Weight 11 kg

The luminaires are suitable for lighting offices, administrative and social spaces.

The luminaires are made of aluminum profile and provided with white powder paint.Pendant luminaires, the ZLR wire pendant is included in the package.

The optical part of the luminaire consists of a microprismatic diffuser with a matt layer creating a homogeneous light without visible points from the LED.

If the luminaire is dimmable, it is dimmable by DALI digital system.

If it is equipped with an autonomous emergency module it is 3W/1h (180 lm).

Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

Installed LED modules in the luminaire 2x LED R595-840 + 2x LED R850-840 + 4x LED 12i80-840
Dimension 850x80 mm
Power 106+20 W *
Luminous flux 13610 lm
Instalation Pendant,Surface mounted
Color rendering index CRI > 80
Light colour CCT 4000 K
Ambient temperature 25 ˚C
Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
Weight 11 kg
